  • Product Code: #54-825-400

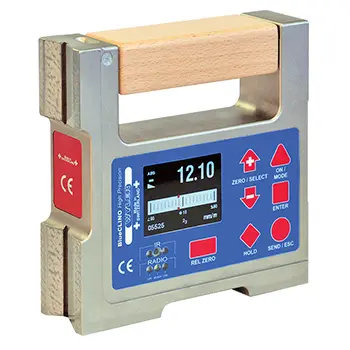

    BlueCLINO High Precision

    Range/Size: See Specs Below

    Graduation: 1 Arcsec (approx. 0.005 mm/m)

    Price:
    Lowest Price Guaranteed

    Product Description

    54-825-400 BlueCLINO High Precision: +/-1 degree

    The 54-825-400 has a resolution of 1 Arcsec (approx. 0.005mm/m.)

    Features:

    • Large, easy to read color display
    • Various color profiles can be chosen
    • Various display methods like bar graphs or spirit levels can be chosen
    • All current units can be indicated
    • High Precision over the whole measuring range of +/-1 degree with integrated temperature compensation
    • The internal software, together with a reversal measurement allows, a simple zero setting
    • Rugged housing, rust protected and hand-scraped prismatic bases made out of cast iron
    • Built-in cross vial for easy alignment of the vertical axis in order to avoid "twist errors"
    • The instrument is compatible with the whole range of digital sensors of WYLER
    • Powered with common 1.5V Batteries, rechargeable batteries or with mains adapter
    • Fulfils the strict CE requirements (immunity against electromagnetic smog)
    • The instrument can be adjusted to the local gravitation
    • Limits of error:
    • Under 0.5 degree = 1 percent of measured value
    • Over 0.5 degree = 0.1 x (( 2 x measured value) -0.5 degree)

    Specifications:

    • Measuring Range: +/-1 degree
    • Setting Time: Value available after / <5 sec
    • Limits of error with 6 months/Gain (TA = 20 degrees C): up to 0.5 degrees: 1 % R.O., >0.5 degree: 0.1 x (2 x R.O.. - 0.5 degrees), at least 1 Arcsec, or 0.005mm/m, R.O = Read-out
    • Limits of error at -45 degrees, 0 degrees, + 45 degrees right: after quick calibration, using the calibration aids/gain: Limits of error as above in the range of +/- 45 degrees but <30 Arcsec
    • Data connection: RS232/RS485, asynchr., 7 DataBits, 2 Stopbits, no parity, 9600 bps
    • Wireless option: Bluetooth ISM Band/24,000 - 24,835 GHz
    • Batteries (lifetime): 2 x size C, total Voltage 3 V maximum: primary types, NiMH, NiCd, NiZn (ca. 20 hrs.)
    • Eternal power supply: +/-24 V DC
    • Dimension housing + net weight: Cast iron, rust-protected: 150 x 150 x 40mm/3.450 kg
    • Temperature range: 0 degree C + 40 degree C
    • CE conformity: Fulfills emission and immunity requirements

    The 54-825-400 is a highly accurate free standing vertical and horizontal leveling system.

  •
