Mitutoyo Linear ScalesMitutoyo AT113 Slim Spar Type Linear Scales – Series 539

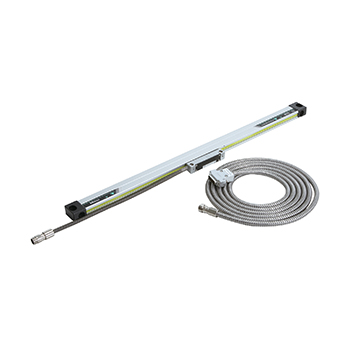

mitutoyo 539-201-30 AT113 Slim Spar Type Linear ScalesSeries 539

Mitutoyo AT113 Slim Spar Type Linear Scales – Series 539

Product Code: 539-201-30

MFGID: 539-201-30

Brand: Mitutoyo

Effective Range: 4"/100mm

Signal Cable Length: 3mm

Product Description

539-201-30 Mitutoyo AT113 Slim Spar Type Linear Scale: 0-4″/100mm

The Mitutoyo 539-201-30 AT113 Slim Spar Type Linear Scale has the following specifications:

Effective Range: 4″/100mm
Model : AT113-100
Signal Cable Length: 3m
Resolution: .001″ to .000005″ / 0.01 to 0.0001mm
Accuracy (20? C):
- Standard: (5 + 5Lo/1000) (Lo = Range)
- High accuracy: (3+3Lo/1000) (Lo = Range)
Output signal: Two 90? phase-shifted sinusoidal signals
Maximum response speed: 120m/min
Signal output pitch: 20 microns
Scale reference point: Output in 50mm pitch
Protection level: IP53
Operating temperature: 0 to 45? C

Features:

Slim spar type with unit sectional dimensions of 22 x 35mm.
Connectable to the KA counter, KLD counter or PSU-200.
Dimensionally compatible with AT116 linear scale units.

Mitutoyo AT113 Slim Spar Type Linear Scales:

539-201-30 AT113 Slim Spar Type Linear Scale: 4″/100mm
539-202-30 AT113 Slim Spar Type Linear Scale: 6″/150mm
539-203-30 AT113 Slim Spar Type Linear Scale: 8″/200mm
539-204-30 AT113 Slim Spar Type Linear Scale: 10″/250mm
539-205-30 AT113 Slim Spar Type Linear Scale: 12″/300mm
539-206-30 AT113 Slim Spar Type Linear Scale: 14″/350mm
539-207-30 AT113 Slim Spar Type Linear Scale: 16″/400mm
539-208-30 AT113 Slim Spar Type Linear Scale: 18″/450mm
539-209-30 AT113 Slim Spar Type Linear Scale: 20″/500mm
539-211-30 AT113 Slim Spar Type Linear Scale: 24″/600mm
539-213-30 AT113 Slim Spar Type Linear Scale: 28″/700mm
539-214-30 AT113 Slim Spar Type Linear Scale: 30″/750mm
539-215-30 AT113 Slim Spar Type Linear Scale: 32″/800mm
539-216-30 AT113 Slim Spar Type Linear Scale: 36″/900mm
539-217-30 AT113 Slim Spar Type Linear Scale: 40″/1000mm
539-218-30 AT113 Slim Spar Type Linear Scale: 44″/1100mm
539-219-30 AT113 Slim Spar Type Linear Scale: 48″/1200mm
539-220-30 AT113 Slim Spar Type Linear Scale: 52″/1300mm
539-221-30 AT113 Slim Spar Type Linear Scale: 56″/1400mm
539-222-30 AT113 Slim Spar Type Linear Scale: 60″/1500mm

Mitutoyo AT113 High Accuracy Slim Spar Type Linear Scales:

539-201-40 AT113 High Accuracy Slim Spar Type Linear Scale: 4″/100mm
539-202-40 AT113 High Accuracy Slim Spar Type Linear Scale: 6″/150mm
539-203-40 AT113 High Accuracy Slim Spar Type Linear Scale: 8″/200mm
539-204-40 AT113 High Accuracy Slim Spar Type Linear Scale: 10″/250mm
539-205-40 AT113 High Accuracy Slim Spar Type Linear Scale: 12″/300mm
539-206-40 AT113 High Accuracy Slim Spar Type Linear Scale: 14″/350mm
539-207-40 AT113 High Accuracy Slim Spar Type Linear Scale: 16″/400mm
539-208-40 AT113 High Accuracy Slim Spar Type Linear Scale: 18″/450mm
539-209-40 AT113 High Accuracy Slim Spar Type Linear Scale: 20″/500mm
539-211-40 AT113 High Accuracy Slim Spar Type Linear Scale: 24″/600mm
539-213-40 AT113 High Accuracy Slim Spar Type Linear Scale: 28″/700mm
539-214-40 AT113 High Accuracy Slim Spar Type Linear Scale: 30″/750mm
539-215-40 AT113 High Accuracy Slim Spar Type Linear Scale: 32″/800mm
539-216-40 AT113 High Accuracy Slim Spar Type Linear Scale: 36″/900mm
539-217-40 AT113 High Accuracy Slim Spar Type Linear Scale: 40″/1000mm
539-218-40 AT113 High Accuracy Slim Spar Type Linear Scale: 44″/1100mm
539-219-40 AT113 High Accuracy Slim Spar Type Linear Scale: 48″/1200mm
539-220-40 AT113 High Accuracy Slim Spar Type Linear Scale: 52″/1300mm
539-221-40 AT113 High Accuracy Slim Spar Type Linear Scale: 56″/1400mm
539-222-40 AT113 High Accuracy Slim Spar Type Linear Scale: 60″/1500mm
