  • Product Code: #469MXSP

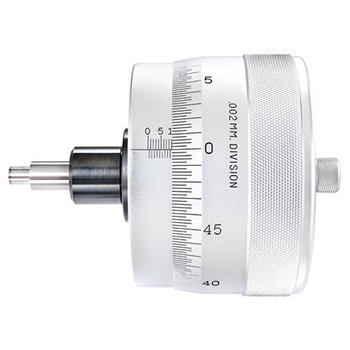

    Super-Precision Micrometer Head # 469MXSP

    Range: 0-25mm

    Graduations: .002mm

    Price: $895.00 $841.30
    Lowest Price Guaranteed
    Quantity

    Product Description

    469MXSP Starrett Large Super-Precision Micrometer Head: 0-25mm

    The Starrett 469MXSP Large Super-Precision Micrometer Head has the following specifications:

    • Range: 0-25mm
    • Graduations: .002mm
    • Accuracy: +/-.00125mm
    • Spindle Material: Carbide
    • Spindle Type: Flat
    • Thimble Type: Plain
    • EDP: 67132

    The Starrett 469, 469M Series Large, Super-Precision Micrometer Head is our most accurate micrometer head. It is also available on special order with double graduations in red and black on the sleeve and thimble, permitting readings both ways with the spindle moving in either direction. The micrometer head has a 4-1/16" (103mm) thimble diameter and is graduated to .0001", .000050", 0.001mm, or 0.002mm for direct reading. It also has staggered graduations for easy counting and reading of lines. The spindle is carbide faced for long life.

    Features:

    • Made In America
    • Starrett satin chrome finish no glare resists rust on all reading surfaces
    • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
    • Quick-reading figures
    • Extremely hard and stable one-piece spindle (the heart of our accuracy and long life)
    • Micro-lapped measuring face for flatness and squareness
    • Quick and easy adjustment

    Starrett Large Super-Precision Micrometer Heads:

    • T469XSP    Large Super-Precision Micrometer Head: 0-1" (.0001")
    • T469HXSP Large Super-Precision Micrometer Head: 0-1" (.00005")
    • 469MXSP    Large Super-Precision Micrometer Head: 0-25mm (.002mm)
    • 469MHXSP  Large Super-Precision Micrometer Head: 0-25mm (.001mm)
  •
