SPI MicrometersSPI 10-731-8 Classic Hole-Mike: .800-1.00″

SPI 10-731-8 Classic Hole-Mike: .800-1.00″

Name: 10-731-8 SPI Classic Hole-Mike: .800-1.00" - Call 800-469-0132 or Buy Online
SKU: 10-731-8
Price: 273.41 USD
Availability: InStock

Product Code: 10-731-8

MFGID: 10-731-8

Brand: SPI

Range: .800-1.00"

Graduation: .0002"

Product Description

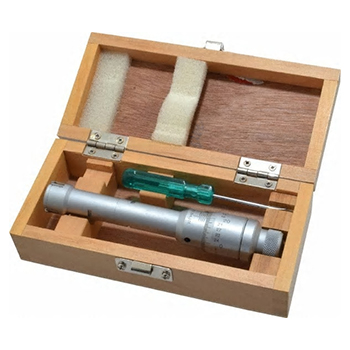

10-731-8 SPI Classic Hole-Mike Inside Micrometer: .800-1.00″

The SPI 10-731-8 classic hole-mike has the following specifications:

Range: .800-1.00″

Graduations: .0002″

Accuracy: +/- .0001″

Measuring Depth: 3.15″

Features:

Ratchet stop ensures greater accuracy and repeatability

Carbide tipped measuring anvils

Three point internal

micrometers are used for precise measurement of bore diameters

Self centering

Self aligning

Able to measure to within .050″ of bottom of a blind hole (up to 4″ capacity)

Feelers taper toward the back for positive reading of the front edge

In lieu of setting rings, setting frames are provided for diameter ranges above 7″ diameter

There is no setting ring included with the 10-731-8 Hole-Mike. Below is the recommended setting ring that should be used to calibrate this hole-mike:

10-738-3 1.00″ setting ring

SPI Classic Individual Hole-Mikes:

10-701-1 Individual Hole-Mike: .150-.175″

10-702-9 Individual Hole-Mike: .175-.225″

10-703-7 Individual Hole-Mike: .225-.275″

10-711-0 Individual Hole-Mike: .275-.350″

10-712-8 Individual Hole-Mike: .350-.425″

10-713-6 Individual Hole-Mike: .425-.500″

10-721-9 Individual Hole-Mike: .500-.650″

10-722-7 Individual Hole-Mike: .650-.800″

10-731-8 Individual Hole-Mike: .800-1.00″

10-732-6 Individual Hole-Mike: 1.00-1.20″
