  • Product Code: #102-304

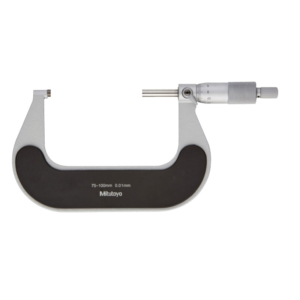

    Outside Micrometer with Ratchet Stop # 102-304

    Range: 75-100mm

    Graduations: .01mm

    Price: $200.00 $170.00
    Lowest Price Guaranteed
    Quantity

    Product Description

    102-304 Mitutoyo Outside Micrometer with Ratchet Stop: 75-100mm

    The Mitutoyo 102-304 Outside Micrometer has the following specifications:

    • Range: 75-100mm
    • Graduation: 0.01mm
    • Accuracy: +/- .003mm

    Features:

    • Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places.
    • With a standard bar except for 0-25mm
    • A ratchet stop or friction thimble for a constant measuring force.
    • Supplied in a fitted plastic case.

    Technical Data

    • Graduations: 0.01mm
    • Flatness: 0.3um
    • Parallelism:
      • .001mm for 0-25mm model
      • .003mm for models over 25mm
    • Measuring Faces: Carbide tipped

    Mitutoyo Series 102 Outside Micrometers - with Ratchet Stop - Metric:

    • 102-301 Outside Micrometer with Ratchet Stop: 0-25mm
    • 102-302 Outside Micrometer with Ratchet Stop: 25-50mm
    • 102-303 Outside Micrometer with Ratchet Stop: 50-75mm
    • 102-304 Outside Micrometer with Ratchet Stop: 75-100mm
  •
