Outside Micrometer with Interchangeable Anvils # 104-201

104-201 Mitutoyo Outside Micrometer with Interchangeable Anvils: 12-18"

The Mitutoyo 104-201 Outside Micrometer with Interchangeable Anvils has the following specifications:

• Range: 12-18"
• Graduations: .001"
• Mass(kg): 4.69
• Remarks: With 6 Anvils & 6 Standards
• With Ratchet Stop

Features:

• Wide measuring range with interchangeable anvils.
• With a Ratchet Stop for constant force.
• Supplied with zero-setting standards bar for each range.

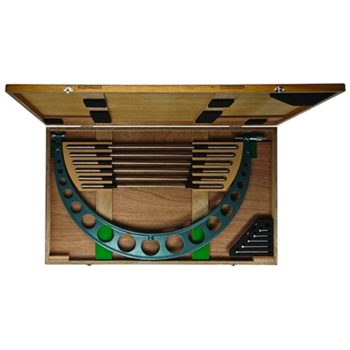

• Supplied in fitted wooden case.
• Measuring faces: Carbide tipped

Technical Data

• Accuracy: +/- [.00016" +/- .00004 (L/3)"] L = Max Range (Inch)
• Graduation: 0.001" or 0.0001" (0-2")
• Flatness:
• .000024" for models up to 12"
• .00004" for models over 12"
• Parallelism:
  • .00008" for models up to 3"
  • .00012" for models up to 6"
  • [.00008" + .00004 (L/4)"] L= Max range (inch)

Mitutoyo Outside Micrometers With Interchangeable Anvils:

Inch:

• 104-165 Outside Micrometer with Interchangeable Anvils: 0-2"
• 104-137 Outside Micrometer with Interchangeable Anvils: 0-6"
• 104-138 Outside Micrometer with Interchangeable Anvils: 6-12"
• 104-152 Outside Micrometer with Interchangeable Anvils: 12-16"
• 104-201 Outside Micrometer with Interchangeable Anvils: 12-18"
• 104-153 Outside Micrometer with Interchangeable Anvils: 16-20"
• 104-202 Outside Micrometer with Interchangeable Anvils: 18-24"
• 104-154 Outside Micrometer with Interchangeable Anvils: 20-24"
• 104-155 Outside Micrometer with Interchangeable Anvils: 24-28"
• 104-203 Outside Micrometer with Interchangeable Anvils: 24-30"
• 104-156 Outside Micrometer with Interchangeable Anvils: 28-32"
• 104-204 Outside Micrometer with Interchangeable Anvils: 30-36"
• 104-157 Outside Micrometer with Interchangeable Anvils: 32-36"
• 104-158 Outside Micrometer with Interchangeable Anvils: 36-40"
• 104-205 Outside Micrometer with Interchangeable Anvils: 36-42"

Metric:

• 104-171   Outside Micrometer with Interchangeable Anvils: 0-50mm
• 104-139A Outside Micrometer with Interchangeable Anvils: 0-100mm
• 104-135A Outside Micrometer with Interchangeable Anvils: 0-150mm
• 104-161A Outside Micrometer with Interchangeable Anvils: 50-150mm
• 104-140A Outside Micrometer with Interchangeable Anvils: 100-200mm
• 104-136A Outside Micrometer with Interchangeable Anvils: 150-300mm
• 104-141A Outside Micrometer with Interchangeable Anvils: 200-300mm
• 104-142A Outside Micrometer with Interchangeable Anvils: 300-400mm
• 104-143A Outside Micrometer with Interchangeable Anvils: 400-500mm
• 104-144A Outside Micrometer with Interchangeable Anvils: 500-600mm
• 104-145A Outside Micrometer with Interchangeable Anvils: 600-700mm
• 104-146A Outside Micrometer with Interchangeable Anvils: 700-800mm
• 104-147A Outside Micrometer with Interchangeable Anvils: 800-900mm
• 104-148A Outside Micrometer with Interchangeable Anvils: 900-1000mm
