Mitutoyo Blade Micrometers – Metric
Product Code: 122-101-10MFGID: 122-101-10
Brand: Mitutoyo
Product Description

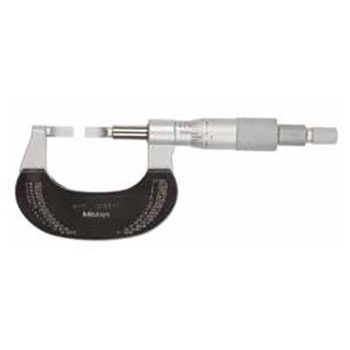

122-101-10 Mitutoyo Blade Micrometer – Metric: 0-25mm
The Mitutoyo 122-101-10 Blade Micrometer has the following specifications:
- Range: 0-25mm
- Graduation: 0.01mm
- Accuracy: ±3um
- Remarks: Type A
- Mass (g): 260
Features:
- The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
- With ratchet stop for constant force.
- Non-slip grip finish (digital models).
- Speedy spindle feed of .4″/10mm /rev. (Quickmike type).
- With a standard bar except 0 – 1″ and 0 -25mm model.
- Supplied in fitted plastic case.
Technical Data:
- Accuracy: Refer to the list of specifications
- Resolution*: .00005″/0.001mm or 0.001mm
- Graduation**: .0001″ or 0.01mm
- Parallelism: .00012″ / 3um for models up to 3″ / 75mm | (3+R/100)um for models over 75mm, | R=max. range (mm) .00016″ for 4″ models
- Display*: LCD
- Battery*: SR44 (1 pc.), 938882
- Battery life*: Approx. 2.4 years under normal use
- *Digital models **Analog models
Function of Digital Model:
- Origin-set, Zero / ABS, Data hold, Data output, inch/mm conversion (on inch/metric models only)
- Function lock
- Alarm: Low voltage, Counting value composition error
If this micrometers page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.
Mitutoyo Blade Micrometer – Metric
- 122-101-10 Blade Micrometer: 0-25mm (Type A)
- 122-111-10 Blade Micrometer: 0-25mm (Type B)
- 122-161-10 Blade Micrometer: 0-25mm (Type C)
- 122-141-10 Blade Micrometer: 0-25mm (Type D)
- 122-102-10 Blade Micrometer: 25-50mm (Type A)
- 122-112-10 Blade Micrometer: 25-50mm (Type B)
- 122-162-10 Blade Micrometer: 25-50mm (Type C)
- 122-142-10 Blade Micrometer: 25-50mm (Type D)
- 122-103-10 Blade Micrometer: 50-75mm (Type A)
- 122-104-10 Blade Micrometer: 75-100mm (Type A)
- 122-105-10 Blade Micrometer: 100-125mm (Type A)
- 122-106-10 Blade Micrometer: 125-150mm (Type A)
- 122-107-10 Blade Micrometer: 150-175mm (Type A)
- 122-108-10 Blade Micrometer: 175-200mm (Type A)
Mitutoyo Blade Micrometer – Inch
- 122-125-10 Blade Micrometer: 0-1″ (Type A)
- 122-135-10 Blade Micrometer: 0-1″ (Type B)
- 122-151-10 Blade Micrometer: 0-1″ (Type D)
- 122-126-10 Blade Micrometer: 1-2″ (Type A)
- 122-127-10 Blade Micrometer: 2-3″ (Type A)
- 122-128-10 Blade Micrometer: 3-4″ (Type A)
