Mitutoyo 324-354-30 Gear Tooth Micrometer: 3-4″

Product Code: 324-354-30
MFGID: 324-354-30

Brand: Mitutoyo

Range: 3-4"/75-100mm

Resolution: .00005"/.001mm

$908.00 $844.44
Lowest Price Guaranteed
Quantity

Product Description

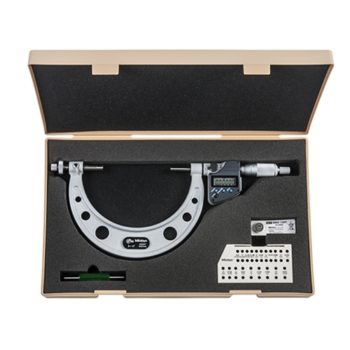

324-354-30 Mitutoyo IP65 Electronic Gear Tooth Micrometer: 3-4″/75-100mm

The Mitutoyo 324-354-30 IP65 Electronic Gear Tooth Micrometer has the following specifications:

Features:

The Mitutoyo Digimatic digital gear tooth micrometer measures gear modules with precision using optional interchangeable anvil-spindle tips to measure different sizes and types of gears. The Mitutoyo 324-354-30 gear tooth micrometer measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.

Note: Interchangeable Ball Anvil-Spindle sets are not included with the 324-354-30 and must be purchased in addition to the gear tooth micrometer.

Mitutoyo IP65 Electronic Gear Tooth Micrometers:

Inch/Metric:

Metric:

Mitutoyo Interchangeable Ball Anvil-Spindle Tip Sets (Ball Diameter):
