Electronic Interchangeable Anvil Micrometer # 340-523

340-523 Mitutoyo Electronic Interchangeable Anvil Micrometer: 600-700mm

The Mitutoyo 340-523 Electronic Interchangeable Anvil Outside Micrometer has the following specifications:

• Range: 600-700mm
• Resolution: .001mm
• Includes: 4 anvils & 4 standards
• With Ratchet Stop
• SPC Data Ouput

Features:

• IP65 water/dust protection on models with a range up to 12"/300mm.
• Wide measuring range with interchangeable anvils.
• With a Ratchet Stop for constant force.
• Supplied with zero-setting standards bar for each range.
• With SPC output

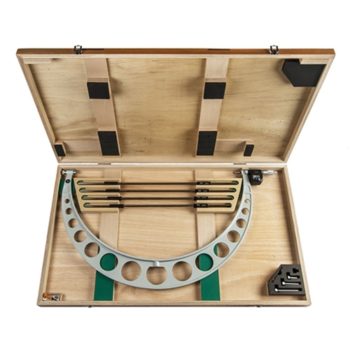

• Supplied in fitted wooden case.

Technical Data

• Accuracy: +/- [.00016" +/- .00004 (L/3)"] L = Max Range (Inch)
• Flatness:
• .000024" for models up to 12"
• .00004" for models over 12"
• Parallelism:
  • .00008" for models up to 3"
  • .00012" for models up to 6"
  • [.00008" + .00004 (L/4)"] L= Max range (inch)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44
• Battery life: Approx. 1.2 years under normal use
• Dust/Water protection level: IP65 (sizes up to 12"/300mm)

Function of Digital Model

• Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
• Function Lock
• 2 Presets

Mitutoyo Electronic Interchangeable Anvil Outside Micrometers:

Metric:

• 340-251-30 Electronic Interchangeable Micrometer: 0-150mm (IP65)
• 340-252-30 Electronic Interchangeable Micrometer: 150-300mm (IP65)
• 340-520      Electronic Interchangeable Micrometer: 300-400mm
• 340-521      Electronic Interchangeable Micrometer: 400-500mm
• 340-522      Electronic Interchangeable Micrometer: 500-600mm
• 340-523      Electronic Interchangeable Micrometer: 600-700mm
• 340-524      Electronic Interchangeable Micrometer: 700-800mm
• 340-525      Electronic Interchangeable Micrometer: 800-900mm
• 340-526      Electronic Interchangeable Micrometer: 900-1000mm

Inch/Metric:

• 340-351-30 Electronic Interchangeable Micrometer: 0-6"/152.4mm (IP65)
• 340-352-30 Electronic Interchangeable Micrometer: 6-12"/152.4-304.8mm (IP65)
• 340-720      Electronic Interchangeable Micrometer: 12-18"/304.8-457.2mm
• 340-721      Electronic Interchangeable Micrometer: 18-24"/457.2-609.6mm
• 340-722      Electronic Interchangeable Micrometer: 24-30"/609.6-762.0mm
• 340-723      Electronic Interchangeable Micrometer: 30-36"/762.0-914.4mm
