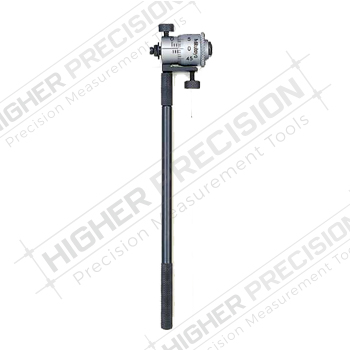

Carbide Tipped Inside Micrometer # 141-212

141-212 Mitutoyo Carbide Tipped Inside Micrometer - Metric

The Mitutoyo 141-212 Carbide Tipped Inside Micrometer - Metric has the following specifications:

• Range: 50 - 300mm
• Travel of Micrometer Head: 13mm
• Accuracy: +/-(6+L/50)μm  L=Maximum measuring length (mm) Fraction rounded up
• Graduation: 0.01mm or .001"
• With 5 rods

Features:

• With locking clamp.
• Each interchangeable rod is marked with its measuring range.
• The sizes of interchangeable rods can be adjusted with spacing collars.
• Both micrometer head and furnished rods are satin-chrome finished throughout.
• Supplied in fitted plastic case. Over 1000mm / 40" supplied in wooden case.

Carbide Tipped Inside Micrometers - Interchangeable-Rod Type - Metric

• 141-003: Carbide Tipped Inside Micrometer: 25 - 32mm
• 141-103: Carbide Tipped Inside Micrometer: 25 - 50mm
• 141-027: Carbide Tipped Inside Micrometer: 50 - 63mm
• 141-211: Carbide Tipped Inside Micrometer: 50 - 200mm
• 141-212: Carbide Tipped Inside Micrometer: 50 - 300mm
• 141-011: Carbide Tipped Inside Micrometer: 200 - 225mm

Inside Micrometers - Interchangeable-Rod Type - Metric

• 141-001: Inside Micrometer: 25-32mm
• 141-101: Inside Micrometer: 25-50mm
• 141-025: Inside Micrometer: 50-63mm
• 141-205: Inside Micrometer: 50-200mm
• 141-206: Inside Micrometer: 50-300mm
• 141-009: Inside Micrometer: 200-225mm
• 141-117: Inside Micrometer: 200-500mm
• 141-118: Inside Micrometer: 200-1000mm
