Electronic Micrometer # 733.1XFLZ-24

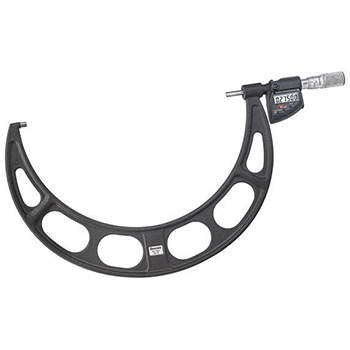

733.1XFLZ-24 Starrett Electronic Micrometer: 23-24"/575-600mm

The Starrett 733.1XFLZ-24 Electronic Micrometer has the following specifications:

• Range: 23-24"/575-600mm
• Resolution: .00005"/.001mm
• Accuracy: ±.0001"/.002mm
• EDP: 72674

The newly designed 733.1 is a full function electronic digital readout outside micrometer with IP67 level of protection for 0-4"/0-100mm ranges only.

The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.

Features:

• IP67 protection against coolants, water, chips, dust and dirt (ranges 0-4"/0-100mm only)
• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System
• Starrett no-glare satin chrome finish on thimble and sleeve
• Micro-lapped carbide measuring faces
• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout
• Balanced and tapered frame
• Extremely hard and stable one-piece spindle
• Auto Off after 20 minutes of nonuse
• Inch/millimeter conversion on English versions
• Smooth friction thimble for uniform pressure
• Measurement HOLD button
• Zero at any position
• Retain and return to true zero reading
• Spindle lock
• Data Output
• PRESET button to install any reading at any position
• Ability to set minimum and maximum limits

733.1 Electronic Micrometers

• 733.1XFL-1 Electronic Micrometer: 0-1"/0-25mm
• 733.1XFLZ-2 Electronic Micrometer: 1-2"/25-50mm
• 733.1XFLZ-3 Electronic Micrometer: 2-3"/50-75mm
• 733.1XFLZ-4 Electronic Micrometer: 3-4"/75-100mm
• 733.1XFLZ-5 Electronic Micrometer: 4-5"/100-125mm
• 733.1XFLZ-6 Electronic Micrometer: 5-6"/125-150mm
• 733.1XFLZ-7 Electronic Micrometer: 6-7"/150-175mm
• 733.1XFLZ-8 Electronic Micrometer: 7-8"/175-200mm
• 733.1XFLZ-9 Electronic Micrometer: 8-9"/200-225mm
• 733.1XFLZ-10 Electronic Micrometer: 9-10"/225-250mm
• 733.1XFLZ-11 Electronic Micrometer: 10-11"/250-275mm
• 733.1XFLZ-12 Electronic Micrometer: 11-12"/275-300mm
• 733.1XFLZ-13 Electronic Micrometer: 12-13"/300-325mm
• 733.1XFLZ-14 Electronic Micrometer: 13-14"/325-350mm
• 733.1XFLZ-15 Electronic Micrometer: 14-15"/350-375mm
• 733.1XFLZ-16 Electronic Micrometer: 15-16"/375-400mm
• 733.1XFLZ-17 Electronic Micrometer: 16-17"/400-425mm
• 733.1XFLZ-18 Electronic Micrometer: 17-18"/425-450mm
• 733.1XFLZ-19 Electronic Micrometer: 18-19"/450-475mm
• 733.1XFLZ-20 Electronic Micrometer: 19-20"/475-500mm
• 733.1XFLZ-21 Electronic Micrometer: 20-21"/500-525mm
• 733.1XFLZ-22 Electronic Micrometer: 21-22"/525-550mm
• 733.1XFLZ-23 Electronic Micrometer: 22-23"/550-575mm
• 733.1XFLZ-24 Electronic Micrometer: 23-24"/575-600mm

733.1 Electronic Micrometers - Metric

• 733.1MEXFL-25    Electronic Micrometer: 0-25mm
• 733.1MEXFLZ-50  Electronic Micrometer: 25-50mm
• 733.1MEXFLZ-75  Electronic Micrometer: 50-75mm
• 733.1MEXFLZ-100 Electronic Micrometer: 75-100mm
• 733.1MEXFLZ-125 Electronic Micrometer: 100-125mm
• 733.1MEXFLZ-150 Electronic Micrometer: 125-150mm
• 733.1MEXFLZ-175 Electronic Micrometer: 150-175mm
• 733.1MEXFLZ-200 Electronic Micrometer: 175-200mm
• 733.1MEXFLZ-225 Electronic Micrometer: 200-225mm
• 733.1MEXFLZ-250 Electronic Micrometer: 225-250mm
• 733.1MEXFLZ-275 Electronic Micrometer: 250-275mm
• 733.1MEXFLZ-300 Electronic Micrometer: 275-300mm
• 733.1MEXFLZ-325 Electronic Micrometer: 300-325mm
• 733.1MEXFLZ-350 Electronic Micrometer: 325-350mm
• 733.1MEXFLZ-375 Electronic Micrometer: 350-375mm
• 733.1MEXFLZ-400 Electronic Micrometer: 375-400mm
• 733.1MEXFLZ-425 Electronic Micrometer: 400-425mm
• 733.1MEXFLZ-450 Electronic Micrometer: 425-450mm
• 733.1MEXFLZ-475 Electronic Micrometer: 450-475mm
• 733.1MEXFLZ-500 Electronic Micrometer: 475-500mm
• 733.1MEXFLZ-525 Electronic Micrometer: 500-525mm
• 733.1MEXFLZ-550 Electronic Micrometer: 525-550mm
• 733.1MEXFLZ-575 Electronic Micrometer: 550-575mm
• 733.1MEXFLZ-600 Electronic Micrometer: 575-600mm

733.1 Electronic Micrometer Sets

• S733.1BXFLZ Electronic Micrometer Set: 0-6"/0-150mm
• S733.1CXFLZ Electronic Micrometer Set: 0-12"/0-300mm
