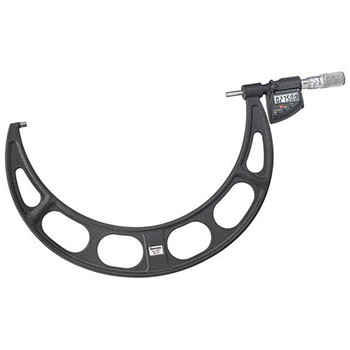

Starrett 733.1XFLZ-15 Electronic Micrometer: 14-15″
Product Code: 733.1XFLZ-15MFGID: 733.1XFLZ-15
Brand: Starrett
Product Description
733.1XFLZ-15 Starrett Electronic Micrometer: 14-15″/350-375mm
The Starrett 733.1XFLZ-15 Electronic Micrometer has the following specifications:
- Range: 14-15″/350-375mm
- Resolution: .00005″/.001mm
- Accuracy: +/- .0001″/.002mm
- EDP: 72590
The newly designed 733.1 is a full function electronic digital readout outside micrometer with IP67 level of protection for 0-4″/0-100mm ranges only.
The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.
Features:
- IP67 protection against coolants, water, chips, dust and dirt (ranges 0-4″/0-100mm only)
- Equipped with an RS232 output – ideal for use with DataSure Wireless Data Collection System
- Starrett no-glare satin chrome finish on thimble and sleeve
- Micro-lapped carbide measuring faces
- Large, easy-to-read .275″ (7mm) tall characters, high contrast LCD digital readout
- Balanced and tapered frame
- Extremely hard and stable one-piece spindle
- Auto Off after 20 minutes of nonuse
- Inch/millimeter conversion on English versions
- Smooth friction thimble for uniform pressure
- Measurement HOLD button
- Zero at any position
- Retain and return to true zero reading
- Spindle lock
- Data Output
- PRESET button to install any reading at any position
- Ability to set minimum and maximum limits
733.1 Electronic Micrometers
- 733.1XFL-1 Electronic Micrometer: 0-1″/0-25mm
- 733.1XFLZ-2 Electronic Micrometer: 1-2″/25-50mm
- 733.1XFLZ-3 Electronic Micrometer: 2-3″/50-75mm
- 733.1XFLZ-4 Electronic Micrometer: 3-4″/75-100mm
- 733.1XFLZ-5 Electronic Micrometer: 4-5″/100-125mm
- 733.1XFLZ-6 Electronic Micrometer: 5-6″/125-150mm
- 733.1XFLZ-7 Electronic Micrometer: 6-7″/150-175mm
- 733.1XFLZ-8 Electronic Micrometer: 7-8″/175-200mm
- 733.1XFLZ-9 Electronic Micrometer: 8-9″/200-225mm
- 733.1XFLZ-10 Electronic Micrometer: 9-10″/225-250mm
- 733.1XFLZ-11 Electronic Micrometer: 10-11″/250-275mm
- 733.1XFLZ-12 Electronic Micrometer: 11-12″/275-300mm
- 733.1XFLZ-13 Electronic Micrometer: 12-13″/300-325mm
- 733.1XFLZ-14 Electronic Micrometer: 13-14″/325-350mm
- 733.1XFLZ-15 Electronic Micrometer: 14-15″/350-375mm
- 733.1XFLZ-16 Electronic Micrometer: 15-16″/375-400mm
- 733.1XFLZ-17 Electronic Micrometer: 16-17″/400-425mm
- 733.1XFLZ-18 Electronic Micrometer: 17-18″/425-450mm
- 733.1XFLZ-19 Electronic Micrometer: 18-19″/450-475mm
- 733.1XFLZ-20 Electronic Micrometer: 19-20″/475-500mm
- 733.1XFLZ-21 Electronic Micrometer: 20-21″/500-525mm
- 733.1XFLZ-22 Electronic Micrometer: 21-22″/525-550mm
- 733.1XFLZ-23 Electronic Micrometer: 22-23″/550-575mm
- 733.1XFLZ-24 Electronic Micrometer: 23-24″/575-600mm
733.1 Electronic Micrometers – Metric
- 733.1MEXFL-25 Electronic Micrometer: 0-25mm
- 733.1MEXFLZ-50 Electronic Micrometer: 25-50mm
- 733.1MEXFLZ-75 Electronic Micrometer: 50-75mm
- 733.1MEXFLZ-100 Electronic Micrometer: 75-100mm
- 733.1MEXFLZ-125 Electronic Micrometer: 100-125mm
- 733.1MEXFLZ-150 Electronic Micrometer: 125-150mm
- 733.1MEXFLZ-175 Electronic Micrometer: 150-175mm
- 733.1MEXFLZ-200 Electronic Micrometer: 175-200mm
- 733.1MEXFLZ-225 Electronic Micrometer: 200-225mm
- 733.1MEXFLZ-250 Electronic Micrometer: 225-250mm
- 733.1MEXFLZ-275 Electronic Micrometer: 250-275mm
- 733.1MEXFLZ-300 Electronic Micrometer: 275-300mm
- 733.1MEXFLZ-325 Electronic Micrometer: 300-325mm
- 733.1MEXFLZ-350 Electronic Micrometer: 325-350mm
- 733.1MEXFLZ-375 Electronic Micrometer: 350-375mm
- 733.1MEXFLZ-400 Electronic Micrometer: 375-400mm
- 733.1MEXFLZ-425 Electronic Micrometer: 400-425mm
- 733.1MEXFLZ-450 Electronic Micrometer: 425-450mm
- 733.1MEXFLZ-475 Electronic Micrometer: 450-475mm
- 733.1MEXFLZ-500 Electronic Micrometer: 475-500mm
- 733.1MEXFLZ-525 Electronic Micrometer: 500-525mm
- 733.1MEXFLZ-550 Electronic Micrometer: 525-550mm
- 733.1MEXFLZ-575 Electronic Micrometer: 550-575mm
- 733.1MEXFLZ-600 Electronic Micrometer: 575-600mm
733.1 Electronic Micrometer Sets
- S733.1BXFLZ Electronic Micrometer Set: 0-6″/0-150mm
- S733.1CXFLZ Electronic Micrometer Set: 0-12″/0-300mm
