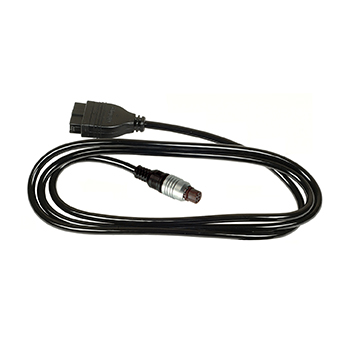

Mitutoyo SPC Connecting Cables
Product Code: 905338MFGID: 905338
Brand: Mitutoyo
Product Description
905338 Mitutoyo SPC Connecting Cable: 1m (40″)
The Mitutoyo 905338 SPC Connecting Cable has the following specifications:
-
- Length: 1m (40″)
- Type: Straight
- Connection Type: F
- Data Send Switch Included: No
- Input plug to Data Processor (10 Pins)
Applicable Gages
- All calipers without absolute encoder
- Height Gage Series: 570-2XX, 192-6XX, 192-67X
- Indicator Series: 575-XXX, 543-6XX, 543-2XX, 543-4XX
- Depth Gage Series: 547-21X, 547-25X, 571-2XX
- Scale Unit Series: 572-XXX
- Thickness Gages: 547-3XX, 547-4XX
Features
- These cables are used to output measurement data from the digimatic gage with the output feature to the digimatic mini processor, digimatic display unit, multiplexer or other device.Â
- Cables of one or two meters are available.Â
- Note that the shape of connector differs depending on the model.Â
SPC Connecting Cables and Compatible Gage Options:
Gages with Applicable SPC Cables Listed Below:Â
- All calipers without absolute encoder
- Height Gage Series: 570-2XX, 192-6XX, 192-67X
- Indicator Series: 575-XXX, 543-6XX, 543-2XX, 543-4XX
- Depth Gage Series: 547-21X, 547-25X, 571-2XX
- Scale Unit Series: 572-XXX
- Thickness Gages: 547-3XX, 547-4XX
- 905338 Straight Type: 1m (40″)
- 905409 Straight Type: 2m (80″)
- 905689 Back Type: 1m (40″)
- 905690 Back Type: 2m (80″)
- 905691 Right Type: 1m (40″)
- 905692 Right Type: 2m (80″)
- 905693 Left Type: 1m (40″)
- 905694 Left Type: 2m (80″)
Gages with Applicable SPC Cables Listed Below:Â
- All Digimatic Calipers with Absolute Encoder
- Height Gage Series: 570-2XX
- Depth Gage Series: 571-2XX
- Scale Unit: 572-XXX
- Micrometers over 12″/300mm
- 959149 Data Out Switch Type: 1m (40″)
- 959150 Data Out Switch Type: 2m (80″)
- 04AZB512 L-Type with Data Out Switch: 1m (40″)
- 04AZB513 L-Type with Data Out Switch: 2m (80″)
Gages with Applicable SPC Cables Listed Below:
- Coolant-Proof Caliper Series: 500-68X, 500-76X, 500-78X
- Coolant-Proof Digimatic Scale Unit: 572-61X
Gages with Applicable SPC Cables Listed Below:
- Digimatic Micrometer IP65
Gages with Applicable SPC Cables Listed Below:
- All Micrometers (not for IP65 mics)
- Indicator Series: 543-11X, 543-13X, 543-14X, 543-18X, 543-17X
- Holtest Series: 468-2XX, 468-9XX
- Micrometer Head Series: 164-162, 164-172, 350-71X, 329-71X
- Borematic Series: 568-XXX
- Mikematic and QuickMike
- Bench Mike Series: 121-XXX
Gages with Applicable Wires Listed Below:
- Indicator Series: 543-5XX
- MU-Checker Series: 519-4XX, 519-621A
- MU-Gages: 179-204, 179-205, 179-206
- Display: 542-022-5A,542-032-5A, 542-036-5A, 572-011A, 572-031A
- Linear Height Series: 518-3XX
- Litematic Series: 318-2XX
- Heightmatic Series: 57XÂ
- Digi Derm Series: 179-7XX
- Hardness Test (Micro Hardness Type)
Gages with Applicable Wires Listed Below:
- ID-N/ID-B Coolant proof digimatic indicators
