  • Product Code: #936937

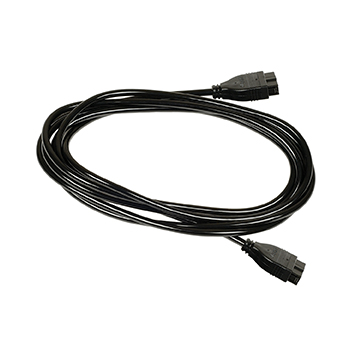

    SPC Connecting Cable # 936937

    Size: 1m (40")

    Type: 10 Pins Type

    Price: $47.85 $45.24
    Lowest Price Guaranteed
    Quantity

    Product Description

    936937 Mitutoyo SPC Connecting Cable: 1m (40")

    The Mitutoyo 905337 SPC Connecting Cable has the following specifications:

    • Length: 1m (40")
    • Type: 10 Pins
    • Input plug to Data Processor (10 Pins)

    Applicable Gages

    • Indicator Series: 543-5XX
    • MU-Checker Series: 519-4XX, 519-621A
    • MU-Gages: 179-204, 179-205, 179-206
    • Display: 542-022-5A,542-032-5A, 542-036-5A, 572-011A, 572-031A
    • Linear Height Series: 518-3XX
    • Litematic Series: 318-2XX
    • Heightmatic Series: 57X
    • Digi Derm Series: 179-7XX
    • Hardness Test (Micro Hardness Type)

    Features

    • These cables are used to output measurement data from the digimatic gage with the output feature to the digimatic mini processor, digimatic display unit, multiplexer or other device.
    • Cables of one or two meters are available.
    • Note that the shape of connector differs depending on the model.

    SPC Connecting Cables and Compatible Gage Options:

    Gages with Applicable SPC Cables Listed Below:
    • All calipers without absolute encoder
    • Height Gage Series: 570-2XX, 192-6XX, 192-67X
    • Indicator Series: 575-XXX, 543-6XX, 543-2XX, 543-4XX
    • Depth Gage Series: 547-21X, 547-25X, 571-2XX
    • Scale Unit Series: 572-XXX
    • Thickness Gages: 547-3XX, 547-4XX
    Gages with Applicable SPC Cables Listed Below:
    • All Digimatic Calipers with Absolute Encoder
    • Height Gage Series: 570-2XX
    • Depth Gage Series: 571-2XX
    • Scale Unit: 572-XXX
    • Micrometers over 12"/300mm
    • 959149 Data Out Switch Type: 1m (40")
    • 959150 Data Out Switch Type: 2m (80")
    • 04AZB512 L-Type with Data Out Switch: 1m (40")
    • 04AZB513 L-Type with Data Out Switch: 2m (80")
    Gages with Applicable SPC Cables Listed Below:
    • Coolant-Proof Caliper Series: 500-68X, 500-76X, 500-78X
    • Coolant-Proof Digimatic Scale Unit: 572-61X
    • 05CZA624 Data Out Switch Type: 1m (40")
    • 05CZA625 Data Out Switch Type: 2m (80")
    Gages with Applicable SPC Cables Listed Below:
    • Digimatic Micrometer IP65
    • 05CZA662 Data Out Switch Type: 1m (40")
    • 05CZA663 Data Out Switch Type: 2m (80")
    Gages with Applicable SPC Cables Listed Below:
    • All Micrometers (not for IP65 mics)
    • Indicator Series: 543-11X, 543-13X, 543-14X, 543-18X, 543-17X
    • Holtest Series: 468-2XX, 468-9XX
    • Micrometer Head Series: 164-162, 164-172, 350-71X, 329-71X
    • Borematic Series: 568-XXX
    • Mikematic and QuickMike
    • Bench Mike Series: 121-XXX
    Gages with Applicable Wires Listed Below:
    • Indicator Series: 543-5XX
    • MU-Checker Series: 519-4XX, 519-621A
    • MU-Gages: 179-204, 179-205, 179-206
    • Display: 542-022-5A,542-032-5A, 542-036-5A, 572-011A, 572-031A
    • Linear Height Series: 518-3XX
    • Litematic Series: 318-2XX
    • Heightmatic Series: 57X
    • Digi Derm Series: 179-7XX
    • Hardness Test (Micro Hardness Type)
    • 936937 10 Pins Type: 1m (40")
    • 965014 10 Pins Type: 2m (80")
    Gages with Applicable Wires Listed Below:
    • ID-N/ID-B Coolant proof digimatic indicators
  •
