Mitutoyo Output CablesMitutoyo U-WAVE-R Receiver

Mitutoyo U-WAVE-R Receiver

Name: 02AZD810D Mitutoyo U-WAVE-R Receiver - Call 800-469-0132 or Buy Online
Brand: Mitutoyo
SKU: 02AZD810D
Price: 537.03 USD
Availability: InStock

Product Code: 02AZD810D

MFGID: 02AZD810D

Brand: Mitutoyo

U-WAVE-R: Up to 15

U-WAVE-T: Up to 100

Product Description

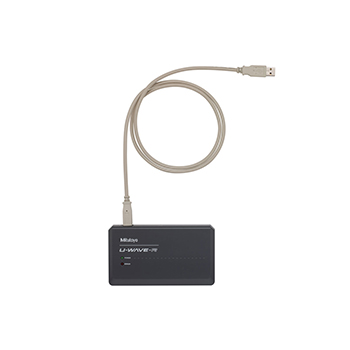

02AZD810D Mitutoyo U-WAVE-R Receiver

The Mitutoyo 02AZD810D U-WAVE-R has the following specifications:

Number of U-WAVE R units that can be connected to PC: Up to 16

Number of U-WAVE R units that can be connected to PC: Up to 100

Software: U-WAVE PAK

USB Cable Length (m): 1

Dimensions (WxDxH): 140 x 80 x 31.6

Mass (g): 130

Wireless Transmitters are listed below. A connection unit is required when ordering a transmitter.

Features:

The transmitter is designed to fit in the space behind the display, and the connecting cable has been replaced by a rigid connector

Approx. 20 m transmission range (within visible range) for the 02AZD810D

2.4GHz wireless system for reliable and secure data transmission

Easy data export to Microsoft, Excel or SPC software applications

Transmitter confirms data transfer by an LED signal and optional buzzer

An IP67 transmitter is available to ensure a coolant-proof gaging system

Low power consumption: 400,000 data transmissions with a single battery

If this micrometers page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.

Mitutoyo U-WAVE Fit – Wireless Transmitter – Series 264

264-620 U-WAVE Fit – Wireless Transmitter – Series 264 U-WAVE-TC

264-621 U-WAVE Fit – Wireless Transmitter – Series 264 U-WAVE-TC

264-622 U-WAVE Fit – Wireless Transmitter – Series 264 U-WAVE-TM

264-623 U-WAVE Fit – Wireless Transmitter – Series 264 U-WAVE-TM

Mitutoyo Connection Unit – Series 264

02AZF310 U-WAVE Fit Connection Unit: Compatible IP67 caliper/Coolant-Proof – IP65 Micrometer

02AZF300 U-WAVE Fit Connection Unit: Standard Caliper
