Name: Mitutoyo 186-103 Radius Gage - Call 800-469-0132 or Buy Online
Brand: Mitutoyo Reference Gages
SKU: 186-103
Price: 42.74 USD
Availability: InStock

Product Code: 186-103

MFGID: 186-103

Brand: Mitutoyo

Range: 1/32"-17/64"

Product Description

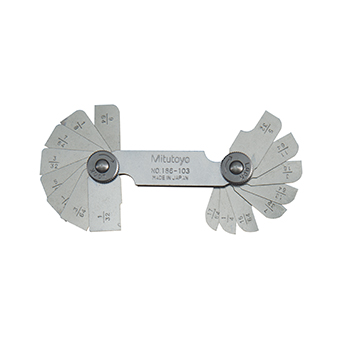

186-103 Mitutoyo Radius Gage: 1/32″-17/64″

The Mitutoyo 186-103 Radius Gage has the following technical specifications:

Range: 1/32″-17/64″

Accuracy: +/- .002″

Composition of Leaves: 16 leaves: 1/32″-17/64″ by 64ths

Remarks: 90 degree arc

Features:

Radius size is stamped on each gage

Both concave and convex radius gages become a pair

With a locking clamp

Mitutoyo Radius Gages – Inch

186-103 Radius Gage: 1/32″-17/64″

186-101 Radius Gage: 1/32″-1/4″

186-102 Radius Gage: 17/64″-1/2″

186-104 Radius Gage: 9/32″-33/64″

Mitutoyo Radius Gages – Metric

186-110 Radius Gage: 0.4-6mm

186-902 Radius Gage: 0.5-13mm

186-105 Radius Gage: 1-7mm

186-106 Radius Gage: 7.5-15mm

186-107 Radius Gage: 15.5-25mm
