SPI Heavy Duty Bench Centers
Product Code: 30-710-8MFGID: 30-710-8
Brand: SPI
Product Description

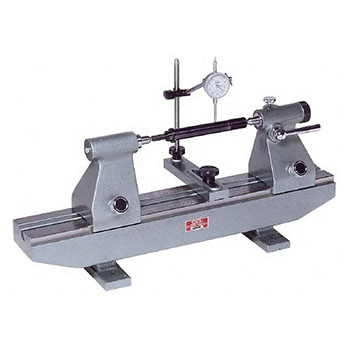

30-710-8 Heavy Duty Bench Center
The SPI 30-710-8 Heavy Duty Bench Center has the following specifications:
- Distance Between Centers: 15.75″
- Center Height: 5.90″
- Max Load: 55lbs
- Overall Length: 29.50″
- Weight: 106lbs
Features:
- For accurate checking of concentricity on cylindrical workpieces.
- 5/8″ x 60 degree MT2 centers are hardened and precision ground.
- Tall stock center is spring loaded and lever operated.
- Easy positive locking of clamps.
- Heavy duty cast iron bed for added stability.
- Adjustable vertical post assembly included (indicator optional).
- Bench center Tolerances
- Center Height: 0.0002″
- Bed Flatness: 0.0003″
- Center Parallelism to Bed: 0.0004″
- Center to Center Alignment: 0.0002″
Heavy Duty Bench Centers
- 30-710-8 Heavy Duty Bench Center: 15.75″Â
- 30-711-6 Heavy Duty Bench Center: 31.50″
