Name: 31-470-8 SPI Pitchmaster - Set: I.D. and O.D. Attachments & Inserts for Calipers - Call 800-469-0132 or Buy Online
Brand: SPI Reference Gages
SKU: 31-470-8
Price: 657.25 USD
Availability: InStock

Product Code: 31-470-8

MFGID: 31-470-8

Brand: SPI

TPI: 42 - 6.5

Description: I.D. and O.D. attachments & inserts for Calipers

Product Description

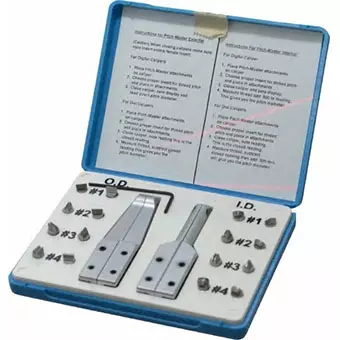

31-470-8 SPI Pitchmaster Set – I.D. and O.D. Attachments & Inserts for Calipers

The SPI 31-470-8 Pitchmaster Set has the following specifications:

TPI: 42 – 6.5

Description: I.D. and O.D. attachments & inserts for Calipers

Compatible with 6″ dial or electronic calipers with max. jaw thickness of 0.140″

Features:

Precision machined and chrome plated caliper and micrometer attachments with precision ground inserts for accurate measurements (sold separately).

The I.D. Caliper attachment set includes 4 pairs of I.D. inserts to measure threads from 42 to 6.5 TPI with a minimum 5/8″ minor internal diameter, and all 60° metric internal threads with a minimum 16 mm minor diameter and a pitch from 0,6 mm to 4,0 mm.

The O.D. Caliper attachment set includes 4 pairs of O.D. inserts for measuring 60° external threads from 42 to 6.5 TPI and 0,6 mm to 4,0 mm pitch.

The O.D. Micrometer attachment set includes 4 pairs of O.D. inserts to measure 60° external threads from 42 to 6.5 TPI, and 60° external metric threads from 0,6 mm to 4,0 mm pitch with a micrometer with 1/4″ dia. spindle.

Ideal for quick checking threads in the machine shop.

Furnished with instructions.

Pitchmaster Sets

31-470-8 Pitchmaster: I.D. and O.D. Attachments & Inserts

31-471-6 Pitchmaster: I.D. Attachment & Inserts for Calipers

31-472-4 Pitchmaster: O.D. Attachments & Inserts for Calipers

31-473-2 Pitchmaster: O.D. Attachments & Inserts for Micrometers
