PRODUCT CODE: 201-151

Dial Snap Gages – Inch

Measuring force: 15+/-3N

Range: 0 - 1"

Price: $445 $382.7
Lowest Price Guaranteed
Quantity

Product Description

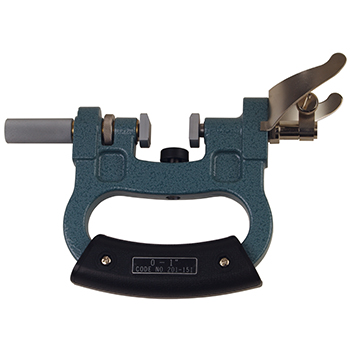

201-151 Mitutoyo Dial Snap Gage – 0 – 1″

The Mitutoyo 201-151 Dial Snap Gage – has the following specifications:

  • Range: 0 – 1″
  • Measuring force: .00025″ or less
  • Parallelism: .00025″ or less
  • Recommended dial indicator (optional): 2803SB-10 (.0001″ reading)
  • Accuracy: Refer to the list of specifications
  • Anvil retracting stroke: .078″ / 2mm
  • Anvil positioning range: 1″ / 25mm
  • Anvil flatness: .00004″ / 1um

Features:

  • Designed for quick go/no-go judgment of diameters of cylinders and shafts in machining processes.
  • Dial indicator is optional.
  • Wide (.53 x .47″ / 13.5 x 12mm), flat carbide anvils
  • Both front edges of the anvil are chamfered for easy insertion.
