MAHR Surface RoughnessMahr 6820602 Geometric Standard, 1.5um

mahr 6820602 marsurf ps 10 accessory

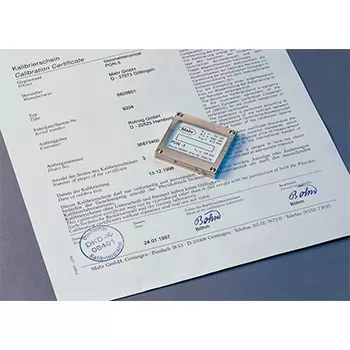

Mahr 6820602 Geometric Standard, 1.5um

Product Code: 6820602

MFGID: 6820602

Brand: MAHR

Profiltiefe: 1.5μm

Product Type: PGN 1

Product Description

6820602 Mahr MarSurf PS 10 – Geometric Standard w/ Sinusoidal Groove Profile, Profiltiefe 1.5?m

The Mahr 6820602 MarSurf PS 10 has the following specifications:

Standard: Geometric
Sinusoidal groove profile
Profiltiefe: 1.5?m
Product Type: PGN 1

Mahr MarSurfs PS 10

6910230 MarSurf PS 10 – Stylus 2?m
6910232 MarSurf PS 10 – Stylus 5?m

Accessories:

6850540 PHT pick-up extension (80mm PHT (80mm)
6111520 Standard probe 2?m (PHT 6-350)
6111526 Standard probe 5?m (PHT 6-350/ 5?m)
6111527 Standard probe 10?m (PHT 6-350/ 10?m)
6111521 Probe for bores with a dia. larger than 3mm (PHT 3-350)
6111524 Probe for grooves (PHT 11-100)
6111525 Probe for concave and convex surfaces (PHTR-100)
6111522 Probe for gear tooth flanks (PHTF 0.5-100)
6111523 Probe for metal sheets (PT 150)
6850715 Pick-up protection with header V-block, steel (PHT-ts4)
7028530 Pick-up protection header V-block, plastic (PHT-ts3)
6910209 Mount MarSurf PS 10 on measuring stand ST (ST-a3)
6910435 RD 18 C / PS 10 upright holder for cylindrical drive unit, ?8mm (ST-a2)
6710803 Measuring stand 300mm with cast iron base (ST-D)
6710806 Measuring stand 300mm with granite plate (ST-F)
6710807 Measuring stand 300mm with granite plate and T-slot (ST-G)
2247086 Adjustable mounting bracket to connect to 814 SR (814 Sh)
4426100 Height Measuring and Scribing Instrument (814 SR)
4426101 Height Measuring and Scribing Instrument (814 SR)
4102410 Data connection cable RS232C (16 EXr)
4102357 Data connection cable USB (16 EXu)
4102231 Transmitter (16 EWe)
4102230 Receiver (e-Stick)
6710401 V-block (PP)
6710604 Parallel vice (PPS)
6710529 XY Table (CT 120)
4246819 Miniature precision vises, set (109 PS)
6820420 Roughness standard with Mahr calibration certificate, profile depth 10?m (PRN 10)
6820601 Geometric Standard with sinusoidal groove profile, Profiltiefe 3?m (PGN 3)
6820602 Geometric Standard with sinusoidal groove profile, Profiltiefe 1.5?m (PGN 1)
6820605 Geometric Standard with sinusoidal groove profile, Profiltiefe 10?m (PGN 10)
9027715 Mahr-calibration certificate for PGN Standard (PGN)
6980102 DKD (German Calibration Service) calibration certificate for PGN Standard (PGN)
4413000 Indicator Stand with Base (815 GN)
4413001 Indicator Stand with Base (815 GN)
4413005 Indicator Stand with Base (815 GN)
4416000 Indicator Stand with Magnetic Base (815 MA)
6299054 Evaluation Software (SW XR 20)
