6910232 Mahr MarSurf PS 10: 5um
The Mahr 6910232 MarSurf PS 10 has the following specifications:
Features:
- Parameters: Ra, Rq, Rz (Ry (JIS) is equivalent to Rz), Rz (JIS), Rmax, Rp, RpA, (ASME), Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp(JIS, ASME) is equivalent to Rmr), RSm, RSk, RS, CR, CF, CL, R, Ar, Rx
- Stylus: 5um
- Calibration function: Dynamic; Ra, Rz, Rsm
- Storage capacity: min. 1350 profiles, min. 500,000 results, min. 250 PDF records, expandable to 32 GB with microSD card
- Languages: German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish, RomanianÂ
- Other: Lock/password protected, date/time
- Data interface: USB, MarConnect (RS232), microSD Slot for SD / SDHC-Cards up to 32 GB
- System of protection: IP 40
- Rechargeable batteries: Lithium-ion battery, min. 1200 measurements
- Wide range power supply: 100 to 264 V
- H x W x D: 160mm x 77mm x 50mm / 6.29″ x 3.03″ x 1.96″
- Weight: 0.49kg / 1.08 lbs
- Measuring principle: Stylus method
- Probe: Inductive skidded probe
- Measuring range: 350um
- Profile resolution: 8nm
- Filter according to ISO/JIS: Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
- Cutoff Ic according to ISO/JIS: Selectable: 1 to 16
- Short stroke under ISO/JIS: Selectable
- Traversing length Lt according ISO/JIS: 1.5mm, 4.8mm, 15mm, N x Lc, variable, automatic
- Traversing length according ISO 12085 (MOTIF): 1mm, 2mm, 4mm, 8mm, 12mm, 16mm
- Evaluation length in according to ISO/JIS: 1.25mm, 4.0mm, 12.5mm
- Measuring force: 0.75mN
Features:

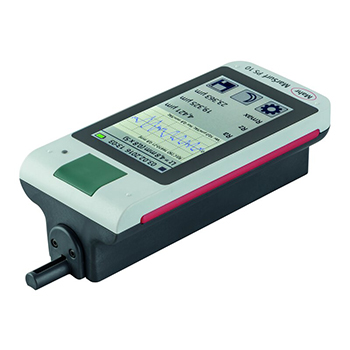

- Compact roughness measuring instrument for mobile use.
- Simple and intuitive to use: As easy to use as a smart phone.
- Large, illuminated 4.3″ TFT touch display.
- Adjustable display.
- Start button also serves as the Home button for direct access to the start screen.
- Data backup as TXT, X3P or PDF file.
- Creation of completed PDF measuring records in the measuring device.
- Customer-specific comments for the PDF measuring record are entered directly into the MarSurf PS 10.
- Power supply independent operation: Over 1200 measurements without having to recharge the instrument.
- An all in one solution. Small and lightweight (approx. 500 g).
- Instrument flexibility: Removable drive unit.
- All the measuring positions you need: horizontal, vertical, upside down.
- 31 surface parameters offer the same range of functions as a laboratory instrument..
- Error free operation thanks to an integrated, removable roughness standard.
- Quick access to your frequently used functions via the Favorites list in the display.
- Very short activation time: results available within seconds.
- Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results.
- NEW: Additional version with transverse drive unit MarSurf PS 10 C2 available (article number 6910235).
- Scope of delivery.
- MarSurf PS 10 unit.
- Drive unit (detachable).
- 1 standard probe conforming to standards.
- Built-in rechargeable battery.
- Roughness standard integrated into housing (detachable), including Mahr calibration certificate.
- Probe protection.
- Charger / 3 adapters.
- Operating instructions.
- Carry case with shoulder strap.
- USB cable.
- Extension cable for drive unit (length 1.2 m).
- Height adjustment (integrated).
- Software: MarCom Professional.
Application:
- For shafts and housing components.
- For large machines.
- For large workpieces.
- For milled and turned parts.
- For ground and honed workpieces.
- On the production line or directly on the machine; ideal for rapid testing of the surface roughness of a workpiece in or on the machine.
Mahr MarSurfs PS 10
- 6910230 MarSurf PS 10: Stylus 2um
- 6910232 MarSurf PS 10: Stylus 5um
Accessories:
- 6850540 PHT pick-up extension (80 mm PHT (80 mm)
- 6111520 Standard probe 2um (PHT 6-350)
- 6111526 Standard probe 5um (PHT 6-350/ 5um)
- 6111527 Standard probe 10um (PHT 6-350/ 10um)
- 6111521 Probe for bores with a dia. larger than 3 mm (PHT 3-350)
- 6111524 Probe for grooves (PHT 11-100)
- 6111525 Probe for concave and convex surfaces (PHTR-100)
- 6111522 Probe for gear tooth flanks (PHTF 0.5-100)
- 6111523 Probe for metal sheets (PT 150)
- 6850715 Pick-up protection with header V-block, steel (PHT-ts4)
- 7028530 Pick-up protection header V-block, plastic (PHT-ts3)
- 6910209 Mount MarSurf PS 10 on measuring stand ST (ST-a3)
- 6910435 RD 18 C / PS 10 upright holder for cylindrical drive unit, 8mm (ST-a2)
- 6710803 Measuring stand 300mm with cast iron base (ST-D)
- 6710806 Measuring stand 300mm with granite plate (ST-F)
- 6710807 Measuring stand 300mm with granite plate and T-slot (ST-G)
- 2247086 Adjustable mounting bracket to connect to 814 SR (814 Sh)
- 4426100 Height Measuring and Scribing Instrument (814 SR)
- 4426101 Height Measuring and Scribing Instrument (814 SR)
- 4102410 Data connection cable RS232C (16 EXr)
- 4102357 Data connection cable USB (16 EXu)
- 4102231 Transmitter (16 EWe)
- 4102230 Receiver (e-Stick)
- 6710401 V-block (PP)
- 6710604 Parallel vice (PPS)
- 6710529 XY Table (CT 120)
- 4246819 Miniature precision vises, set (109 PS)
- 6820420 Roughness standard with Mahr calibration certificate, profile depth 10um (PRN 10)
- 6820601 Geometric Standard with sinusoidal groove profile, Profiltiefe 3um (PGN 3)
- 6820602 Geometric Standard with sinusoidal groove profile, Profiltiefe 1.5um (PGN 1)
- 6820605 Geometric Standard with sinusoidal groove profile, Profiltiefe 10um (PGN 10)
- 9027715 Mahr-calibration certificate for PGN Standard (PGN)
- 6980102 DKD (German Calibration Service) calibration certificate for PGN Standard (PGN)
- 4413000 Indicator Stand with Base (815 GN)
- 4413001 Indicator Stand with Base (815 GN)
- 4413005 Indicator Stand with Base (815 GN)
- 4416000 Indicator Stand with Magnetic Base (815 MA)
- 6299054 Evaluation Software (SW XR 20)
