Small Round Parts Vice # SRG2000-VISE
Product Code: SRG2000-VISEMFGID: SRG2000-VISE
Brand: Phase II
Product Description

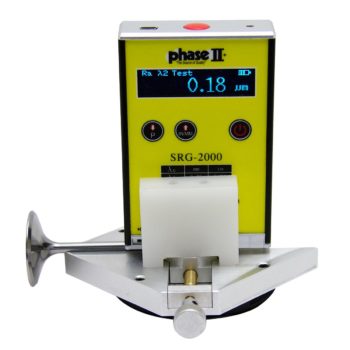

SRG2000-Vise Phase II Small Round Parts Vice
The Phase II SRG2000-Vise Small Round Parts Vice is to be used with the SRG-2200 Surface Roughness Tester.
Profilometer Specifications:
- Roughness parameter: Ra, Rms(Rq), (ISO), Rt, Rz (DIN)
- Measuring range: Ra: 0.05-10.0mm / Rz 0.1-50mm
- Measuring range: Rms: 0.05-10.0mm / Rt: 0.1-50mm
- Accuracy: +/- 12% of actual Value
- Display Type: 1.14″ IPS TFT
- Cut-off lengths: 0.01″, 0.03″, 0.10″ (0.25, 0.80, 2.50mm)
- Filter: Gauss Digital
- Tracing length: 0.23″ (6mm)
- Evaluation Length: 1.25mm, 4.0mm, 5.0mm
- Tracing speed: 0.04″/second (1.0mm/second)
- Pick-up stylus: Piezo-electric
- Tracer tip: Diamond with a radius of 10mm +/- 2.5mm
- Memory: 500 Values
- Transmission: Bluetooth
- Operating temperature: 32-104 degrees F (0-40 degrees C)
- Power: 1pc 1.5v AA Battery
- Contact force on probe: <0.5N
- Static measuring force of sensor stylus: <0.16N
- Dimensions: 73 x 28 x 62mm
- Weight: 0.5lbs (220g)
The New Phase II SRG-2200 Mini Surface Roughness Tester is a next generation of surface roughness tester developed by the Phase II Metrology Group that features high accuracy, a wide range of application, simple operation, and stable performance. It is widely applicable in surface roughness testing all kinds of metals and non-metals. This unit has a large memory with data output via Bluetooth communication.
The 1.14″ IPS TFT display shows choice of surface roughness parameter Ra, Rz, Rq and Rt at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness value is possible by means of a built-in calibration feature which makes adjustment of this instrument very easy. Data output via Bluetooth makes saving surface roughness results fast and easy. This surface roughness tester operates on various surfaces, not only flat but also outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm. The areas of application are widespread. It is suitable for inspection departments, quality control, on the shop floor during machining, during assembly, and on site.
Phase II Mini Portable Surface Roughness Tester & Accessories:
- SRG-2200 Mini Portable Surface Roughness Tester
- SRG2000-VISE Small Round Parts Vise
