GS Tooling GS160 G 6″ Precision Milling Machine Vise Replacement Parts
Product Code: 327322MFGID: 327322
Brand: GS Tooling
Product Description

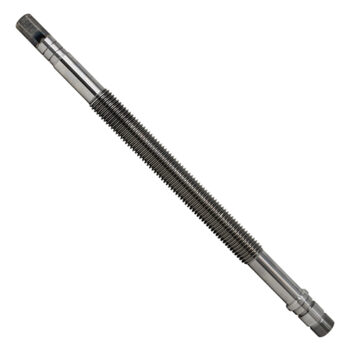

327322 GS Tooling GS160 G 6″ Precision Milling Machine Vise Replacement Part: Main Screw
The GS Tooling 327322 GS160 G 6″ Precision Milling Machine Vise Replacement Part has the following specifications:
- Type: Main Screw
- Replacement Part: GS160G
Features:
This vise has been redesigned with new industry leading workholding features.
- Jaw opening: 9.13″ / 232mm
- Bed height: 2.875″+/-0.0005″
- Weight: 68lbs / 31kg
- Narrower body style to allow more vises on a machine table
- The bearing pack has been relocated to help reduce oil/water/chip leakage into the vise body
- The thrust bearings have been replaced with ball bearings to make the pack stronger and more stable
- Spherical segment creates all-directional alignment and reduces jaw lift for improved performance
- Spindle does not protrude past the end of the body
- Brush seal design
- Perpendicularity (running face and jaw plate): 0.0004″
- Parallelism (running face to bottom of bed): 0.0006″
- Material: FCD-60 (80,000psi)
- Stationary jaw: 4 bolt stationary design reduces lift
- Pull-type design: Reduces stress on body during clamping
- Chip evacuation: Straight through the body on sides and ends. Locations strategically chosen to not reduce body strength
- Max. Clamping Force: 30378 ft/lbs
If this vises page does not have the specifications or information you are searching please visit the GS Tooling company website. You can find their website by Clicking Here.
