Product Description
468-984 Mitutoyo Digimatic Holtest Three-Point Internal Micrometer Set: 50-75mm
The Mitutoyo 468-984 Digimatic Holtest Three-Point Internal Micrometer Set has the following specifications:
- Range: 50-75mm
- Resolution: .001mm
- Complete Unit Set
The Mitutoyo Digimatic Holtest internal micrometer utilizes three anvils and contact points for self-centering, precision measurements of the inside dimensions of bores. The 468-984 Mitutoyo Digimatic Holtest digital internal micrometer set features self-centering anvils evenly spaced at 120° with contact points coated in Titanium Nitride (TiN) to provide accurate, sensitive measurements that are highly durable. Precision-machined gears ensure reliable, repeatable measurements that are shown on a large, easy-to-read LCD display in an impact and water resistant housing. The holtest’s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
Features:
- Available in Metric and Inch/Metric models
- Optional extension rod allows for measuring deep holes
- SPC output function allows for quick and easy data management in real time
- Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error, Battery Replacement
- Scale on thimble and sleeve is laser etched for easier reading in all conditions
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.*
- Holtests up to 4″/100mm diameter measurements supplied in a fitted plastic case
- Holtests over 4″/100mm diameter measurements supplied in a wooden case
To watch a video on the Mitutoyo 468-984 Digimatic Holtest Three-Point Internal Micrometer Set: Click Here
Technical Data:
- Contact point: tin-coating
- Measuring method: Three-point method
- Display: LCD
- Battery: SR44
- Battery life: Approx. 8 months under normal use
This Digimatic Holtest Set is the “complete unit” style. There is a readout for each of the three individual heads included in this set so the operator
does not need to interchange or swap out the different measuring heads.

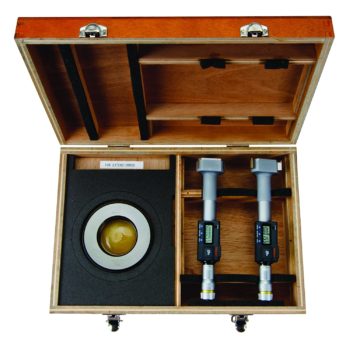

The Mitutoyo 468-984 Digimatic Holtest Bore Gage/Internal Micrometer set includes the following:
- Digimatic Holtest: 50-63mm
- Digimatic Holtest: 62-75mm
- 177-314 Setting Ring: 62mm
Mitutoyo Digimatic Holtest Three-Point Internal Micrometers: Metric:
Complete Unit Sets:
- 468-981 Digimatic
Holtest Three Point Internal Micrometer Set: 6-12mm
- 468-982 Digimatic
Holtest Three Point Internal Micrometer Set: 12-25mm
- 468-983 Digimatic
Holtest Three Point Internal Micrometer Set: 25-50mm
- 468-984 Digimatic Holtest Three Point Internal Micrometer Set: 50-75mm
- 468-985 Digimatic
Holtest Three Point Internal Micrometer Set: 75-100mm
Interchangeable Head Sets:
- 468-971 Digimatic
Holtest Three Point Internal Micrometer Set: 6-12mm
- 468-972 Digimatic
Holtest Three Point Internal Micrometer Set: 12-20mm
- 468-973 Digimatic
Holtest Three Point Internal Micrometer Set: 20-50mm
- 468-974 Digimatic
Holtest Three Point Internal Micrometer Set: 50-100mm
- 468-975 Digimatic
Holtest Three Point Internal Micrometer Set: 100-200mm
Individual Sets:
- 468-161 Digimatic
Holtest Three Point Internal Micrometer: 6-8mm
- 468-162 Digimatic
Holtest Three Point Internal Micrometer: 8-10mm
- 468-163 Digimatic
Holtest Three Point Internal Micrometer: 10-12mm
- 468-164 Digimatic
Holtest Three Point Internal Micrometer: 12-16mm
- 468-165 Digimatic
Holtest Three Point Internal Micrometer: 16-20mm
- 468-166 Digimatic
Holtest Three Point Internal Micrometer: 20-25mm
- 468-167 Digimatic
Holtest Three Point Internal Micrometer: 25-30mm
- 468-168 Digimatic
Holtest Three Point Internal Micrometer: 30-40mm
- 468-169 Digimatic
Holtest Three Point Internal Micrometer: 40-50mm
- 468-170 Digimatic
Holtest Three Point Internal Micrometer: 50-63mm
- 468-171 Digimatic
Holtest Three Point Internal Micrometer: 62-75mm
- 468-172 Digimatic
Holtest Three Point Internal Micrometer: 75-88mm
- 468-173 Digimatic
Holtest Three Point Internal Micrometer: 87-100mm
- 468-174 Digimatic
Holtest Three Point Internal Micrometer: 100-125mm
- 468-175 Digimatic
Holtest Three Point Internal Micrometer: 125-150mm
- 468-176 Digimatic
Holtest Three Point Internal Micrometer: 150-175mm
- 468-177 Digimatic
Holtest Three Point Internal Micrometer: 175-200mm
- 468-178 Digimatic
Holtest Three Point Internal Micrometer: 200-225mm
- 468-179 Digimatic
Holtest Three Point Internal Micrometer: 225-250mm
- 468-180 Digimatic
Holtest Three Point Internal Micrometer: 250-275mm
- 468-181 Digimatic
Holtest Three Point Internal Micrometer: 275-300mm
The Mitutoyo Digimatic Internal Micrometers have been one of the most commonly used three-point bore gages in the industry for over 15 years now. The easy
to use electronics on the digimatic readout are simple enough for anyone to master in a matter of minutes. Each of the digimatic internal micrometers
has a ratchet stop which will provide better repeatability among operators. These internal micrometers are accurate with great repeatability and are
highly recommend from Higher Precision.
Mitutoyo USA does not always stock the Digimatic Holtest three-point internal micrometers that measure in only metric. The Digimatic Holtest bore gages
that measure in inch/metric are more readily available here in the U.S. It is best to verify stock levels on the metric versions with one of our inside
sales agents prior to checking out. If the metric only version is not in stock and has a long delivery, our inside sales department can assist you
in finding the correct inch/metric equivalent or assist you in finding another solution.
