Optical Comparators

Quick Answer

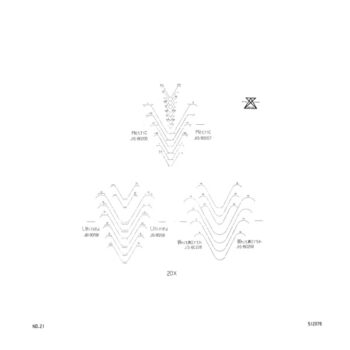

An optical comparator is a precision optical instrument that projects a magnified silhouette of a part onto a screen for dimensional measurement and profile comparison against an overlay template or digital reference. Optical comparators are used in manufacturing and quality control to inspect the geometry, contour, and dimensions of parts that are difficult to measure with contact gages — including threads, gear teeth, cutting tools, stamped parts, and complex formed profiles.
