Angle Plates
Quick Answer
An angle plate is a precision workholding and reference tool consisting of two hardened, ground surfaces set at exactly 90° to each other. Angle plates are used on surface plates, milling machines, and grinding machines to hold workpieces vertically for machining and inspection operations, to provide a precise 90° reference surface for layout and squareness checking, and as a stable clamping platform for parts that cannot be held horizontally.

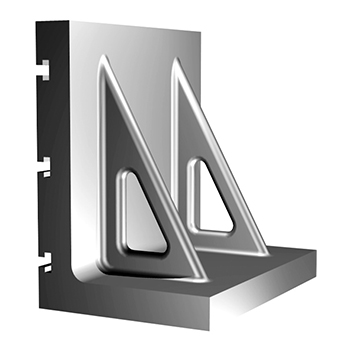

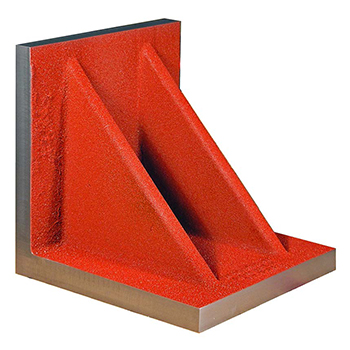

Higher Precision stocks angle plates from Suburban Tool, Starrett, INSIZE, and SPI. Solid and box-style angle plates, adjustable angle plates, and magnetic angle plates in a range of sizes for surface plate inspection, milling, surface grinding, and precision layout applications. Need help selecting? Call us at 800-469-0132 or contact us online.
