Fowler 54-950-125 zCAT Test/Calibration Master
Product Code: 54-950-125MFGID: 54-950-125
Brand: Fowler
Product Description

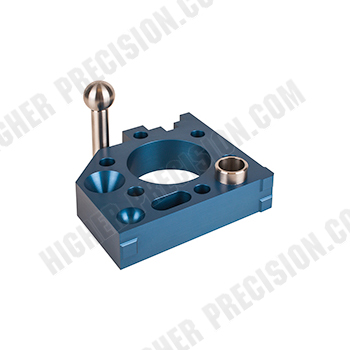

54-950-125 Fowler zCAT Test/Calibration Master
The Fowler 54-950-125 zCAT Test/Calibration Master is compatible with the Zcat DCC Coordinate Measuring Machine
The Fowler 54-950-001 Fowler zCAT Coordinate Measuring Machine has the following specifications:
- Working Volume: X and Y 700mm diameter, Z 250mm
- Diametral Accuracy (um): 3.0 + (D/ 100mm
- Linear Accuracy (um): 5.0 + (L/ 100mm
- Fixturing Accuracy Requirement: 5mm
- Machine Speed: User controlled to 150 mmps
- Machine Air Requirement: None required
- Construction: Stainless steel for all structural components
- Machine Power Requirements: 100-240 V AC+/-10%, 50-60Hz
- Battery Life: 4 hours
- Power Consumption: Peak 15 W, normal 10 W
- Manual Motion Control: User controlled by hand movement of probe
- Controller: Onboard PCB provides motion control, error mapping, |++ interface and ControlCAT metrology software
- Temperature Compensation: Onboard monitoring and compensation
- Probe Type: TP20 probe
- Machine Weight: 13.6kg, 30lbs
- Machine Dimensions (W x D x H)
Features:
- Calibration Sphere Included
- Quick Start Guide
- Reusable Shipping Container
- Standard 1 year warranty
Fowler zCAT Coordinate Measuring Machine & Accessories:
- 54-950-001 zCAT DCC CMM
- 54-950-105 zCAT MK4 Software
- 54-950-150 zCAT Travel Case
- 54-950-120 zCAT Calibration
- 54-950-170 zCAT Basic Fixturing Kit
- 54-950-101 TP20 Touch Probe
- 54-950-125 zCAT Test/Calibration Master
- 54-950-165 zCAT Dust Cover
- 54-950-130 zCAT Replacement AC Adaptor
