MAHR MicrometersMahr 4163006 Vernier Inside Micrometer: 150-175mm

Mahr 4163006 Vernier Inside Micrometer: 150-175mm

Name: 4163006 Mahr Vernier Inside Micrometer: 150-175mm - Call 800-469-0132 or Buy Online
SKU: 4163006
Price: 245.34 USD
Availability: InStock

Product Code: 4163006

MFGID: 4163006

Brand: MAHR

Measuring Range: 150-175mm

Error limit G: 7µm

Product Description

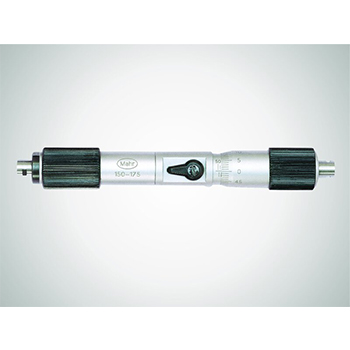

4163006 Mahr Vernier Inside Micrometer: 150-175mm

The Mahr 4163006 Vernier Inside Micrometer has the following specifications:

Measuring Range: 150-175mm

Error limit G: 7µm

Readings: 0.01mm

Spindle thread pitch: 0.5mm

Features:

Rigid, lightweight tubular construction

Spindle is hardened throughout and ground

Measuring faces spherically lapped, one measuring face adjustable

Scales with satin-chrome finish

From measuring range 100-125 mm with heat insulators and a locking device

Supplied with: Case

Accessories:

For measurements of

Special wear resistant steel, hardened and lapped Dimensions according to DIN 2250 C Manufacturing tolerance in accordance to DIN 2250 Uncertainty of the engraved actual dimension 1/2 IT1

Mahr Vernier Inside Micrometers

4163000 Vernier Inside Micrometer: 30-40mm

4163001 Vernier Inside Micrometer: 40-50mm

4163002 Vernier Inside Micrometer: 50-70mm

4163003 Vernier Inside Micrometer: 70-100mm

4163004 Vernier Inside Micrometer: 100-125mm

4163005 Vernier Inside Micrometer: 125-150mm

4163006 Vernier Inside Micrometer: 150-175mm

4163007 Vernier Inside Micrometer: 175-200mm
