Mahr 4168022 Vernier Inside Micrometer Set: 100-500mm
Product Code: 4168022MFGID: 4168022
Brand: MAHR
Product Description

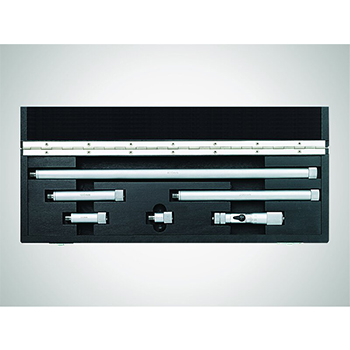

4168022 Mahr Vernier Inside Micrometer Set: 100-500mm
The Mahr 4168022 Vernier Inside Micrometer Set has the following specifications:
- Measuring Range: 100-500mm
- Extensions 44 Cv length in mm: 25 / 50 / 100 / 200mm
- Measuring head 44 Cm Readings: 0.01mm
- Measuring head 44 Cm Spindle thread pitch: 0.5mm
Features:
- Rigid, lightweight tubular construction
- Spindle is hardened throughout and ground
- Locking lever
- Scales with satin-chrome finish
- Carbide tipped spherical measuring faces
- Interchangeable extensions 44 Cv with cylindrical gage rods that are spring-mounted in protective sleeves; for the extension of the measuring range
- Protection sleeves have a satin chrome finish
- Span of error Basic unit 5 µm
- Basic unit in combination with any of the extensions 4 µm + 10 x 10-6 x l (l = length of the combination in mm)
- Supplied with: Case
