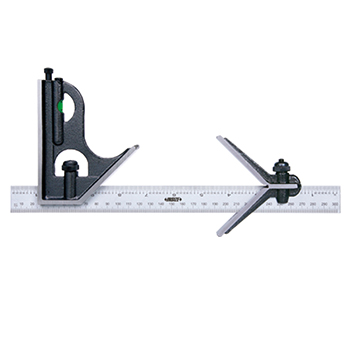

2278-3E Insize Combination Square Set Blade range: 12″
The Insize 2278-3E Combination Square Set has the following specifications:
Blade Range: 12″
Blade Graduation: 1/8″ and 1/16″ on front face, 1/32″ and 1/64″ on back face
Optional accessory: rigid rule
3-piece set
Features:
Center head (made of cast iron): To locate center of cylinder with diameter (d): 1.181″ DIA-3.937″ DIA Accuracy: ?.006″.
Protractor head (made of cast iron): To set the blade at desired angle to an edge of a workpiece, and can be used to measure angles Range: 0-180?,
accuracy: ?7min.
Square head (made of cast iron): To set the blade at 90? or 45? to an edge of a workpiece Accuracy: ?8min for 90? square,?10min for 45? square.
Optional accessory: rigid rule.
Combination Square Sets:
2278-2 Combination Square Set Blade Range:
12″/300mm (2-piece set)
2278-2E Combination Square Set Blade Range: 12″ (2-piece
set)
2278-3 Combination Square Set Blade Range:
12″/300mm (3-piece set)
2278-3E Combination Square Set Blade Range: 12″ (3-piece set)
2278-180 Combination Square Set Blade
Range: 12″/300mm (4-piece set)
2278-180E Combination Square Set Blade Range:
12″ (4-piece set)
