Dyer Gage 225-455 Bore Gage: 15.75-31.50″
Product Code: 225-455MFGID: 225-455
Brand: Dyer Gage
Product Description

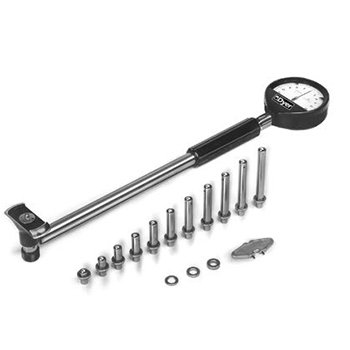

225-455 DYER GAGE Deep Reach Precision Bore Gage – Depth 118.1″/3000mm: 15.75-31.50″
The DYER GAGE 225-455 Deep Reach Precision Bore Gage has the following specifications:
- Range Inch: 15.75-31.50″
- Range mm: 400-800mm
- Z1: 11.81″
- Max. Travel Contact Point: 0.102″
Features:
MEASURE I.D.S FROM 0.18″ – 31.5″ (4.5mm – 800.00mm), GAGES HAVE LARGE SELF-CENTERING BASE
- Single-unit shaft lengths for the highest degree of measuring accuracy.
- Inch/Metric. Convert by changing dial indicator.
- In-between and longer sizes quoted on request.
- Large chrome plated self-centering base Rc 65, carbide ball contact points.
- Sealed construction, for use under dirty and oily conditions.
Maximum Measuring Accuracy:
- Linear ± 0.000040″ (0.001mm)
- Repeatability ±0.000010″ (0.00025mm)
- Gage R & R capability 10% when measuring high tolerance bores.
If this bore gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Deep Reach Precision Bore Gages – Depth 118.1″/3000mm
- 225-420 Deep Reach Precision Bore Gage: 1.38-2.36″
- 225-425 Deep Reach Precision Bore Gage: 1.97-3.94″
- 225-430 Deep Reach Precision Bore Gage: 1.97-5.91″
- 225-435 Deep Reach Precision Bore Gage: 3.94-6.30″
- 225-440 Deep Reach Precision Bore Gage: 6.30-11.41″
- 225-445 Deep Reach Precision Bore Gage: 11.02-16.14″
- 225-450 Deep Reach Precision Bore Gage: 11.02-20.08″
- 225-455 Deep Reach Precision Bore Gage: 15.75-31.50″
