Dyer Gage 290-020 Bore Gage: 2.165-9.84″
Product Code: 290-020MFGID: 290-020
Brand: Dyer Gage
Product Description

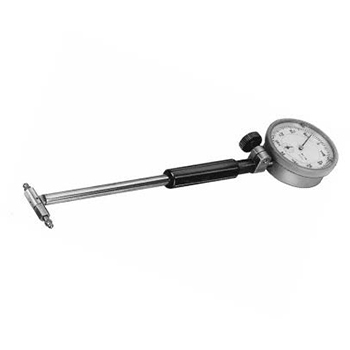

290-020 DYER GAGE Pitch Diameter of Gears/Splines Bore Gages: 2.165-9.84″
The DYER GAGE 290-020 Pitch Diameter of Gears/Splines Bore Gages has the following specifications:
- Range inch: 2.165-9.84″
- Range mm: 55-250mm
- Maximum Diameter Balls: 0.276″
- Maximum Travel/Contact: ±0.027
- Distance from the Bottom “h” Inch (mm): 0.590″ (15.0)
- Measuring Depth w/ Standard Handles “MD” Inch (mm): 0.944″ (24.0)
- Total Measuring Depth w/ Standard Handles “TMD” Inch (mm): 5.51″ (140.0)
- Contact Point Max. Travel Inch (mm): 0.055″ (1.4)
Maximum Measuring Accuracy
- Linear ±0.000040″ (±0.001 mm)
- Repeatability 0.000020″ (< 0.0005 mm)
- Gage R & R 10% measuring close tolerance parts.
Features:
- Accuracy and large range.
- Select any carbide ball size. Many standard and custom balls in stock.
- Carbide ball contacts thread on measuring head.
- Customized standards. Contact Dyer office.
If this bore gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Pitch Diameter of Gears/Splines Bore Gages
- 290-005 Pitch Diameter of Gears/Splines Bore Gages 0.315-0.472″
- 290-010 Pitch Diameter of Gears/Splines Bore Gages 0.472-0.866″
- 290-015 Pitch Diameter of Gears/Splines Bore Gages 0.866-2.165″
- 290-020 Pitch Diameter of Gears/Splines Bore Gages 2.165-9.84″
- 290-030 Pitch Diameter of Gears/Splines Bore Gages 3.397-20.079″
