Dyer Gage 440-010 Sleeve Holder: 9.10″/235mm
Product Code: 440-010MFGID: 440-010
Brand: Dyer Gage
Product Description

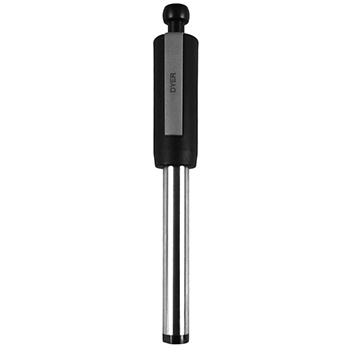

440-010 DYER GAGE Larger Diameter Sleeve Holder: 9.10″ (235 mm)
The DYER GAGE 440-010 Larger Diameter Sleeve Holder has the following specifications:
- Holder Length (overall): 9.10″ (235 mm)
- Shaft Ø: 0.708″ (18 mm)
Maximum Measuring Accuracy
- Linear ±0.000040″ (±0.001 mm)
- Repeatability <0.000040" (<0.001 mm)
- Gage R & R ?10% capability when measuring high tolerance bores.
Features:
- Used to measure the closest to the bottom of a bore.
- Contacts are set towards the bottom of the sleeve to allow the measurement to be as close to the bottom of the part as possible.
- Measuring at the top of the part requires a depth stop for added stability.
- Insertion chamfer is minimal to allow for max centering in the part.
- Carbide ball contacts are standard, but other materials are available upon request
240/440 handles will accept 0.375″ or 8 mm diameter stem indicator. Each handle includes two interchangeable brass bushings for each diameter and an allen wrench.
Heat Stabilization Handles of all Dyer precision bore gages are made from Invar steel, a special alloyed steel that resists temperature change. This eliminates errors due to circulating temperatures.
If this bore gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Larger Diameter Sleeve Holder
