MAHR Bore GagesMahr 4474001 Self Centering Bore Gage: 1.4-4″/35-100mm

mahr 4474001 marameter self centering bore gage

Mahr 4474001 Self Centering Bore Gage: 1.4-4″/35-100mm

Name: 4474001 Mahr MaraMeter Self Centring Bore Gage: 35-100mm/1.4-4" - Call 800-469-0132 or Buy Online
SKU: 4474001
Price: 1128.00 USD
Availability: InStock

Product Code: 4474001

MFGID: 4474001

Brand: MAHR

Measuring Range: 35-100mm/1.4-4"

Distance of movable anvil: 1.3mm

Product Description

4474001 Mahr MaraMeter Self Centering Bore Gage: 35-100mm/1.4-4″

The Mahr 4474001 MaraMeter Self Centering Bore Gage – 844 N has the following specifications:

Measuring Range: 35-100mm/1.4-4″

Error limit: 2μm

Repeatability: 0.5μm

Distance of movable anvil: 1.3

Measuring depth: 148mm

Carbide-tipped moving anvil; stationary anvil with steel ball

No indicator included

Features:

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a hardened steel ball.

Transmission lever system transfers movement of the movable anvil to indicating instrument.

The broad centering bridge ensures automatic centering in the bore.

Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel.

Highly resistant to wear and tear because of carbide tipped moving anvil.

Constant measuring force due to built-in spring, eliminating user influence.

Universally applicable and extremely versatile as every instrument spans a broad measuring range, within this range it is quick and easy to adjust to any size.

Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops.

Invar steel has a particularly low expansion coefficient and thus makes the instrument totally insensitive to any kind of heat. Body heat from the user, increases in ambient temperature have no influence on the measuring results.

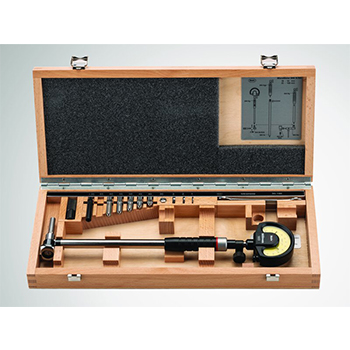

Scope of delivery: Measuring holder, Measuring Head, Anvil spindle, Wooden case, excludes indicator.

Application:

Measuring the diameter, roundness and conical form of a bore as well as the distances of parallel plane surfaces.

Mahr MaraMeter Self Centering Bore Gages – 844 N:

4474000 MaraMeter Self Centering Bore Gage: 18-50mm/.7-2″

4474001 MaraMeter Self Centering Bore Gage: 35-100mm/1.4-4″

4474002 MaraMeter Self Centering Bore Gage: 100-250mm/4-10″

4474003 MaraMeter Self Centering Bore Gage: 250-400mm/10-16″

4474004 MaraMeter Self Centering Bore Gage: 400-800mm/16-32″

4474005 MaraMeter Self Centering Bore Gage: 250-800mm/10-32″
