    Borematic Snap Open Bore Gage Complete Unit Set # 568-957

    Range: 25-50mm

    Resolution: .001mm

    Price: $5,460.00 $4,865.00
    Lowest Price Guaranteed
    Quantity

    Product Description

    568-957 Mitutoyo Borematic Absolute Digimatic Snap Open Bore Gage Set: 25-50mm

    The Mitutoyo 568-957 Borematic Snap Open Bore Gage has the following specifications:

    • Range: 25-50mm
    • Resolution: .001mm
    • Complete Unit Set

    The Mitutoyo Borematic Absolute Digimatic Snap Bore Gages are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head.  The snap open lever style readout creates better repeatability among users.  The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

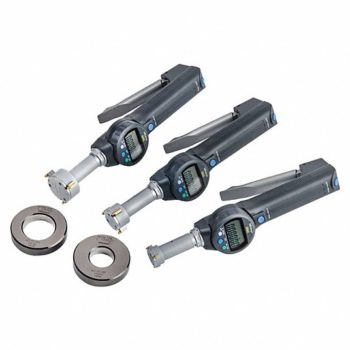

    The Mitutoyo 568-957 borematic bore gage set includes the following :

    • Borematic Bore Gage: 25-30mm
    • Borematic Bore Gage: 30-40mm
    • Borematic Bore Gage: 40-50mm
    • 177-139 Setting Ring: 25mm
    • 177-290 Setting Ring: 40mm

    This Borematic Set is the "complete unit" style. There is a readout for each of the three individual heads included in this set so the operator does not need to interchange or swap out the different measuring heads.

    Features:

    • TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
    • Large LCD digits of 8.5mm height for error-free reading.
    • 330-degree rotatable display unit for easy reading at any angle.
    • GO/NO-GO judgment function.
    • The ABSOLUTE linear encoder eliminates the fear of over-speed errors.
    • With SPC data output.
    • Setting rings for origin point setting are optional.
    • Can measure deep holes by attaching an optional extension rod.
    • Measurement can be taken closer to the bottom of a blind bore.
    • Supplied in fitted wooden case.
    • Contact point: Carbide or titanium coating* (*over 12mm/.5" models)

    Mitutoyo Borematic Absolute Digimatic Snap Open Bore Gages - Metric:

    Individuals:

    • 568-361 Borematic Absolute Digimatic Snap Bore Gage: 6-8mm
    • 568-362 Borematic Absolute Digimatic Snap Bore Gage: 8-10mm
    • 568-363 Borematic Absolute Digimatic Snap Bore Gage: 10-12mm
    • 568-364 Borematic Absolute Digimatic Snap Bore Gage: 12-16mm
    • 568-365 Borematic Absolute Digimatic Snap Bore Gage: 16-20mm
    • 568-366 Borematic Absolute Digimatic Snap Bore Gage: 20-25mm
    • 568-367 Borematic Absolute Digimatic Snap Bore Gage: 25-30mm
    • 568-368 Borematic Absolute Digimatic Snap Bore Gage: 30-40mm
    • 568-369 Borematic Absolute Digimatic Snap Bore Gage: 40-50mm
    • 568-370 Borematic Absolute Digimatic Snap Bore Gage: 50-63mm
    • 568-371 Borematic Absolute Digimatic Snap Bore Gage: 62-75mm
    • 568-372 Borematic Absolute Digimatic Snap Bore Gage: 75-88mm
    • 568-373 Borematic Absolute Digimatic Snap Bore Gage: 87-100mm
    • 568-374 Borematic Absolute Digimatic Snap Bore Gage: 100-113mm
    • 568-375 Borematic Absolute Digimatic Snap Bore Gage: 112-125mm

    Interchangeable Head Style Sets:

    • 568-924 Borematic Absolute Digimatic Snap Bore Gage Set: 6-12mm
    • 568-925 Borematic Absolute Digimatic Snap Bore Gage Set: 12-25mm
    • 568-926 Borematic Absolute Digimatic Snap Bore Gage Set : 25-50mm
    • 568-927 Borematic Absolute Digimatic Snap Bore Gage Set: 50-100mm

    Complete Unit Sets:

    • 568-955 Borematic Absolute Digimatic Snap Bore Gage Set: 6-12mm
    • 568-956 Borematic Absolute Digimatic Snap Bore Gage Set: 12-25mm
    • 568-957 Borematic Absolute Digimatic Snap Bore Gage Set: 25-50mm
    • 568-958 Borematic Absolute Digimatic Snap Bore Gage Set: 50-75mm
    • 568-959 Borematic Absolute Digimatic Snap Bore Gage Set: 75-100mm
  •
