Dyer Gage Caliper GagesDyer Gage 651-208 Groove Gage: 2.8-3.6″/70-90mm

dyer gage 651-208 electronic o ring groove gage 651 series

Dyer Gage 651-208 Groove Gage: 2.8-3.6″/70-90mm

Name: 651-208 DYER Groove Gage: 2.8-3.6"/70-90mm - Call 800-469-0132 or Buy Online
SKU: 651-208
Price: 731.08 USD
Availability: InStock

Product Code: 651-208

MFGID: 651-208

Brand: Dyer Gage

Application Range: 2.8-3.6"/70-90mm

Length L: 3.15"/85mm

Product Description

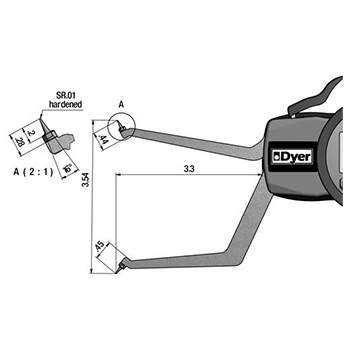

651-208 DYER GAGE Electronic O-Ring Groove Gage – 651 Series: 2.8-3.6″/70-90mm

The DYER GAGE 651-208 Electronic O-Ring Groove Gage – 651 Series has the following specifications:

Application Range: 2.8-3.6″/70-90mm

Length L: 3.15″/85mm

Max Groove Depth A*: 0.20″/5mm

Contact Angle: 45°

Contact Tip Radius: SR 0.01″/SR 0.2mm

Graduation Order: 0.0005″/0.010mm

Features:

Fast, accurate, repeatable.

Lightweight

SPC output for USB or Mitutoyo devices. Cables offered separately.

Absolute and relative modes with Min, Max and Hold programs.

Tolerance limit markers with green/red LED for visual operator judgment

Internal memory that holds a maximum of 80 measured values.

Programmable auto shut off for battery savings.

IP 67. Gages are shop rugged.

Analog segment (fan) display.

Keypad lock.

Wireless data option. Contact us with your requirement.

Special customized arms, ball sizes and/or ball material are also available. Dyer is dedicated to solving your special measuring applications. Contact Dyer Applications Engineering with your specific gage requirement.

If this caliper gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.

DYER GAGE Electronic O-Ring Groove Gage – 651 Series

651-203 Electronic O-Ring Groove Gage – 651 Series 0.8-1.6″/20-40mm

651-204 Electronic O-Ring Groove Gage – 651 Series 1.2-2.0″/30-50mm

651-205 Electronic O-Ring Groove Gage – 651 Series 1.6-2.4″/40-60mm

651-206 Electronic O-Ring Groove Gage – 651 Series 2.0-2.8″/50-70mm

651-207 Electronic O-Ring Groove Gage – 651 Series 2.4-3.2″/60-80mm

651-208 Electronic O-Ring Groove Gage – 651 Series 2.8-3.6″/70-90mm

651-209 Electronic O-Ring Groove Gage – 651 Series 3.2-4.0″/80-100mm
