PRODUCT CODE: 683-3Z

0-90 Degree Chamfer Gage # 683-3Z

Range: 0-1"

Graduations: .001"

Price: $413 $388.22
Lowest Price Guaranteed
Quantity

Product Description

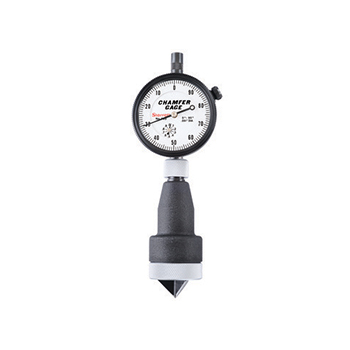

683-3Z Starrett 0-90 Degree Internal Chamfer Gage: 0-1″

The Starrett 683-3Z Chamfer Gage has the following specifications:

  • Range: 0-1″
  • Graduations: .001″
  • Angle: 0-90°
  • EDP: 63686

Internal chamfer gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face of the gage. These gages directly measure the diameter of chamfered holes. No setting master is necessary. When the three-blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator. In case of wear, the gage may be adjusted to read the proper number.

Features:

  • Made in the USA
  • When the three-blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
  • No setting master is necessary
  • Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
  • Gages are also available with electronic indicators on request
  • Deluxe Padded Case
  • All ground surfaces are of hardened tool steel
  • Indicators are AGD design

Starrett Internal Chamfer Gages – Inch:

  • 683-1Z Internal 0-90° Chamfer Gage: 0-3/8″
  • 683-2Z Internal 0-90° Chamfer Gage: 0-1/2″
  • 683-3Z Internal 0-90° Chamfer Gage: 0-1″
  • 683-4Z Internal 0-90° Chamfer Gage: 1-2″
  • 684-1Z Internal 90-127° Chamfer Gage: 0-3/8″
  • 684-2Z Internal 90-127° Chamfer Gage: 0-1/2″
  • 684-3Z Internal 90-127° Chamfer Gage: 0-1″
  • 684-4Z Internal 90-127° Chamfer Gage: 1-2″
