Product Description

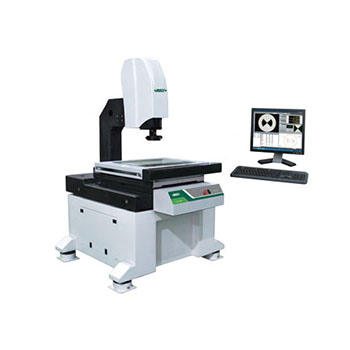

ISD-V500N-U INSIZE CNC Measuring System: 470x370x200mm
The INSIZE ISD-V500N-U CNC Measuring System has the following specifications:
- Measuring Range: 470x370x200mm
- Stage Size: 786x636mm
- Stage Glass Size: 570x470mm
- Resolution of X/Y/Z Axis: 0.5µm
- Accuracy of X/Y/Z Axis: <=(2.5+L/100)µm (L is the measuring length in mm)
- Repeatability of X/T Axis: 2µm
- Objective: 0.7X ~ 4.5X (zoom)
- Workign Distance: 92mm
- Magnification: 33X ~ 195X (on 19″ monitor)
- View field (diagonal length: 1.7-11.1mm
- Matification: 20X-128X(on 19.5″ monitor)
- Camera: 1/2″ color CCD, o.4M pixel “
- Illumination: surface: coaxial Light programmable segmented ring fight contour: adjustable LED light ”
- Max workpiece height: 200mm
- Max workpiece weight: 30kg
- Operation system: Windows 7/10
- Drive Method: Automatic
- Power Supply: 220V, 50/60Hz
Features:
- Automatic edge-detection, focus measuring, contour scanning, calibration, etc
- Servo motors for X,Y,Z axis
If this cmm probes page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE CNC Measuring System
- ISD-V500N-U CNC Measuring System 470x370x200mm
- ISD-V501N-U CNC Measuring System 500x400x200mm
- ISD-V500HN-U CNC Measuring System 470x370x400mm
- ISD-V501HN-U CNC Measuring System 500x400x400xx
