GS Tooling Retention Knobs – Taper CT40
Product Code: 366034MFGID: 366034
Brand: GS Tooling
Product Description

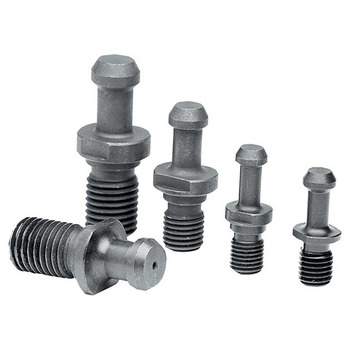

366034 GS Tooling Retention Knob – Taper CT40: GSC470X15
The GS Tooling 366034 Retention Knob – Taper CT40 has the following specifications:
- Model: GSC470X15
- D: 0.748″
- d: 0.551″
- L: 0.787″
- F: 0.157″
- Angle: 15°
- Thread: 5/8×11″
- Coolant Through: Y
Features:
- Ground Pilot
- O-Ring on Pilot to prevent coolant penetration into the spindle
Can’t find your retention knob?
We invite your inquiries. Please have ready the following information when calling:
- Taper of Machine
- Make and Model No. of the Machine
- Draw Bar Thread Diameter and Pitch
- Taper Angle required underneath head of stud
If this collet chucks page does not have the specifications or information you are searching please visit the GS Tooling company website. You can find their website by Clicking Here.
GS Tooling Retention Knob – Taper CT40
- 366034 Retention Knob – Taper CT40 GSC470X15
- 366036 Retention Knob – Taper CT40 GS474
- 366038 Retention Knob – Taper CT40 GSC474
- 366040 Retention Knob – Taper CT40 GSC475
- 366042 Retention Knob – Taper CT40 GS475
- 366044 Retention Knob – Taper CT40 PS498
- 366046 Retention Knob – Taper CT40 PS531X45
- 366048 Retention Knob – Taper CT40 GS532X15
- 366050 Retention Knob – Taper CT40 GS532X45
- 366052 Retention Knob – Taper CT40 GS532X60
- 366054 Retention Knob – Taper CT40 GS532X90
- 366056 Retention Knob – Taper CT40 GSC532X15
- 366058 Retention Knob – Taper CT40 GSC532X45
- 366060 Retention Knob – Taper CT40 GSC532X60
- 366062 Retention Knob – Taper CT40 GSC532X90
- 366064 Retention Knob – Taper CT40 PS552
- 366066 Retention Knob – Taper CT40 PSC552
- 366068 Retention Knob – Taper CT40 GS572X45
- 366070 Retention Knob – Taper CT40 PS572X60
- 366072 Retention Knob – Taper CT40 PS572X90
- 366074 Retention Knob – Taper CT40 PSC572X45
- 366076 Retention Knob – Taper CT40 PSC572X60
- 366078 Retention Knob – Taper CT40 PSC572X90
