GS Tooling 5 Micron AA ER Collet Sets – Metric
Product Code: 336986MFGID: 336986
Brand: GS Tooling
Product Description

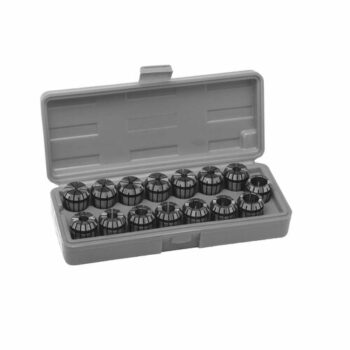

336986 GS Tooling 5 Micron AA ER Collet Set – Metric: 1-7mm x 0.5mm
The GS Tooling 336986 5 Micron AA ER Collet Set – Metric has the following specifications:
- Range: 1-7mm x 0.5mm
- No.of Pcs: Metric 13pc Set
- Series: ER11
Features:
- 16 slots allows sufficient collapse while increasing the area of contact with less tendency to distort
- All edges are deburred and rounded to promote good interface with the taper of the chuck without the tendency to damage it. This results in more consistent repeatability
- Collets are polished to eliminate blemishes that promote corrosion. Better corrosion resistance will result in longer product life of both the collet and the holder between the collet and the cutting tool shank
- Minimized variation of cutting edges
- Maximized Concentricity
- Evenly distributed cutting edges for high performance machining
- Highly polished OD surfaces reduce the amount of force absorbed by friction between the collet and the collet chuck seat, increasing the grip force on the cutting tool. The inside bore of the collet is intentionally left unpolished to increase the friction
- Improve system performance and lower cost per piece when used with quality GS chucks
- Consistent cutting profiles ensure the job stays within desired tolerances
If this collets page does not have the specifications or information you are searching please visit the GS Tooling company website. You can find their website by Clicking Here.
GS Tooling 5 Micron AA ER Collet Set – Metric
- 336986 5 Micron AA ER Collet Set – Metric 1-7mm x 0.5mm
- 336987 5 Micron AA ER Collet Set – Metric 1-10mm x 1.0mm
- 336988 5 Micron AA ER Collet Set – Metric 2-13mm x 1.0mm
- 336989 5 Micron AA ER Collet Set – Metric 2-16mm x 1.0mm
- 336990 5 Micron AA ER Collet Set – Metric 3-20mm x 1.0mm
- 336991 5 Micron AA ER Collet Set – Metric 4-26mm x 1.0mm
