PRODUCT CODE: 4126701

Digital Depth Gage – # 4126701

Measuring Range: 300mm/12"

Resolution: 0.01mm/.0005"

Price: $575.7 $485.00
Lowest Price Guaranteed
Quantity

Product Description

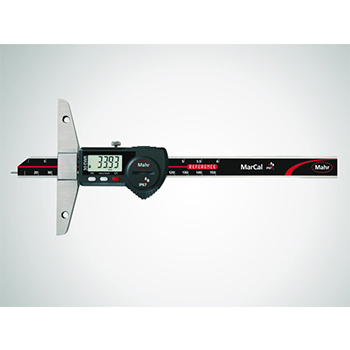

4126701 Mahr Digital Depth Gage – MarCal 30 EWR: 0-300mm/12″

The Mahr 4126701 Digital Depth Gage – MarCal 30 EWR has the following specifications:

  • Measuring Range: 300mm/12″
  • Resolution: 0.01mm /.0005″
  • Error limit: 0.04mm

Standard Accessories:

  • 4102520 Battery 3V, Type CR 2032.
  • 4102357 Data Connection Cable USB (2 m) – 16 EXu.
  • 4102410 Data Connection Cable Opto RS232C (2 m), with SUB-D jack 9-pin – 16 EXr.
  • 4102915 Data Connection Cable Digimatic (2 m), Flat plug 10-pin – 16 EWd.
  • 4126511 Cross Beam Extension 200 mm – 30 EXm.
  • 4126510 Cross Beam Extension 300 mm – 30 EXm.
  • 4125611 Anvil for distance measurement to be fixed to the measuring pin – 30 ESa.

Functions:

  • ON/OFF RESET Set display to zero mm/inch.
  • PRESET enter a numerical value.
  • Reference-Lock/Unlock.
  • DATA (Data transmission via connection cable).
  • Auto-ON/OFF.

Features:

  • Immediate measurement due to the Reference system.
  • Excellent resistance against dust, coolants and lubricants, protection class IP67.
  • MarConnect data output, choose alternatively: USB, OPTO RS232C or Digimatic.
  • Dirt wipers are integrated in the slide.
  • Life of the battery up to 3 years.
  • Max measuring speed 2,5 m/s (100″/s).
  • High contrast LCD with 8.5mm high digits.
  • Lapped guide way.
  • Beam and cross beam are made of hardened stainless steel.
  • Locking screw.
  • Supplied with: Case, battery, operating instructions.

Digital Calipers MarCal 30 EWR

  • 4126700 Digital Caliper 0-150mm/6″
  • 4126701 Digital Caliper 0-300mm/12″
  • 4126702 Digital Caliper 0-500mm/20″
