  • Product Code: #440MZ-150RL

    Depth Micrometer # 440MZ-150RL

    Range: 0-150mm

    Graduations: .01mm

    Price: $347.00 $326.18
    Lowest Price Guaranteed
    Quantity

    Product Description

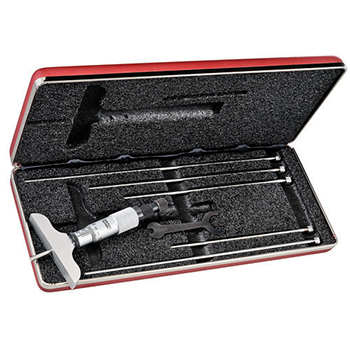

    440MZ-150RL Starrett Depth Micrometer with Ratchet/Speeder Combo: 0-150mm

    The Starrett 440MZ-150RL Depth Micrometer has the following specifications:

    • Range: 0-150mm
    • Graduation: .01mm
    • Micrometer Head Accuracy: +/- .0025mm
    • Rod Accuracy: +/- .005mm
    • Base Length: 63.5mm
    • Number of Rods: 6
    • Rod Diameter: 3.2mm
    • Lock Nut Type: Ring Type Knurled
    • Thimble Type: Ratchet
    • EDP: 52120

    Features:

    • Made in USA
    • The depths of holes, slots, shoulders and projections can be measured with these fine tools
    • Combination ratchet and speeder for uniform pressure and quicker adjustment
    • Ring-type knurled lock nut for quick and sure locking
    • Satin chrome reading surface is glare free and resists rust

    Starrett 440 & 440M Series Depth Micrometers with 2.5"(63.5mm) Base Length:

    • 440MZ-75RL    Depth Micrometer with Ratchet/Speeder Combo: 0-75mm
    • 440MZ-150RL Depth Micrometer with Ratchet/Speeder Combo: 0-150mm
    • 440MZ-225RL  Depth Micrometer with Ratchet/Speeder Combo: 0-225mm
    • 440Z-3RL Depth Micrometer with Ratchet/Speeder Combo: 0-3"
    • 440Z-6RL Depth Micrometer with Ratchet/Speeder Combo: 0-6"
    • 440Z-9RL Depth Micrometer with Ratchet/Speeder Combo: 0-9"

    Replacement depth rods for the Starrett 440MZ-150RL Depth Micrometer:

    • PT99361 Replacement Depth Rod for 440M Series Depth Mics: 0-25mm
    • PT99362 Replacement Depth Rod for 440M Series Depth Mics: 25-50mm
    • PT99363 Replacement Depth Rod for 440M Series Depth Mics: 50-75mm
    • PT99364 Replacement Depth Rod for 440M Series Depth Mics: 75-100mm
    • PT99365 Replacement Depth Rod for 440M Series Depth Mics: 100-125mm
    • PT99366 Replacement Depth Rod for 440M Series Depth Mics: 125-150mm
  •
