PRODUCT CODE: 00730079

MICRO-HITE+M 350

Measuring Range: 0-14"/350mm

Maximum Permissible Error: 1.8+2L/1000μm

Request Quote

Product Description

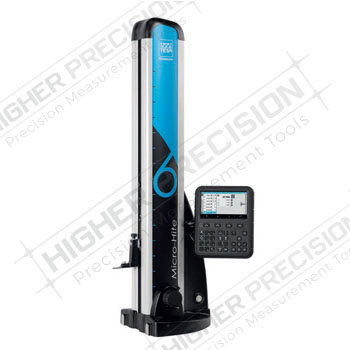

00730079 Brown & Sharpe MICRO-HITE+M 350: 0-14″/350mm

The Brown & Sharpe 00730079 MICRO-HITE+M 350 has the following specifications:

  • Measuring Range: 0-14″/350mm
  • Application Range: 0-20″/520mm
  • Fine Adjustment
  • Measuring Force: 1.6 ± 0.25 N
  • Max Permissible error (?m), [L en mm]: 1.8+2L/1000?m
  • Repeatability limit: On Surface: ? 1; On Arc: ? 1
  • Max. Perp. Error with IG13 Probe (?m): Frontal: 5 – Lateral: 5
  • Max. Perp. Error, Mechanical (?m): Frontal: 7
  • Autonomy (h): 8
  • Trigger Force (N): 1.6 ± 0.25
  • Resolution: 0.0001/.001/.01mm – 0.00001/.0001/.001″
  • Screen: (L x H, mm): 84×152
  • Keyboard: Backlit
  • Zero: Fixed
  • Coefficient of Linear Expansion: 11.5 x 10-6 K-1
  • Integrated Fine Adjustment
  • Weight: 33kg/73lbs
  • Power Supply: External power supply or integrated rechargeable battery
  • Units: mm/in
  • EDP: 76624

Features:

  • For workshops and laboratories
  • Motorized displacements
  • Air cushion system
  • Adjustable panel
  • Color & touch screen
  • Constant trigger force
  • Included SCS certificate
  • 1D & 2D measurement modes
  • Robust cast-iron frame to guarantee longevity and stability of the results in the long term
  • Patented QUICKCENTER technology integrated to efficiently determine the culmination points, advanced functions for multi-task instrument

These motorized 2D height gauges are the most precise and powerful in the TESA product range. They feature advanced functions such as statistical analysis, programming etc. They are the only height gauges on the market guaranteeing frontal as well as lateral perpendicularity (which can be measured with the option IG13).

Unlike the instruments of other manufacturers, TESA height gauges are automatically delivered with a SCS (Swiss Calibration Service) certificate, which is a guarantee of expertise and optimal stability and longevity.

Below is a video for the 00730079 MICRO-HITE and links to different MICRO-HITE sizes.

Brown & Sharpe MICRO-HITE Height Gages

  • 00730073 MICRO-HITE 350: 0-14″/350mm
  • 00730074 MICRO-HITE 600: 0-24″/600mm
  • 00730075 MICRO-HITE 900: 0-35″/900mm

With Fine Adjustment

  • 00730076 MICRO-HITE 350F: 0-14″/350mm
  • 00730077 MICRO-HITE 600F: 0-24″/600mm
  • 00730078 MICRO-HITE 900F: 0-35″/900mm

With Motorized Displacements

  • 00730079 MICRO-HITE+M: 0-14″/350mm
  • 00730080 MICRO-HITE+M: 0-24″/600mm
  • 00730081 MICRO-HITE+M: 0-35″/900mm
