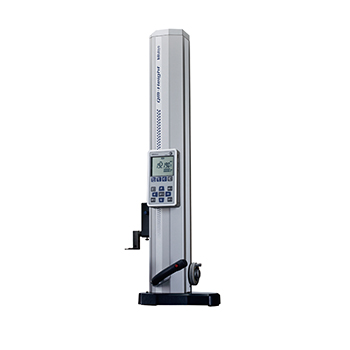

Mitutoyo 64PKA095A QMH-24 Height Gage: 24″/600mm
Product Code: 64PKA095AMFGID: 64PKA095A
Brand: Mitutoyo
Product Description
64PKA095A Mitutoyo QM-Height – 0-24″/0-600mm
The Mitutoyo 64PKA095A QM-Height 0-24″/0-600mm has the following specifications:
- Range: 0-24″/ 0-600mm
- Accuracy: +/-(2.4+2.1L/600)um L = Measuring length (mm)
- Resolution: 0.001 / 0.0005mm /.00005″ / .0001″
- Perpendicularity: 12um
- Guiding Method: Roller bearing
- Drive Method: Manual operation
- Scale Type: Electromagnetic induction-type ABSOLUTE linear encoder
- Measuring Force: 1.5+/-0.5(N)
- Data Output Digimatic: Output/USB
- Pneumatic Floating System: N/A
- Power Supply: AC Adapter Battery / (LR6 x 4) Standard accessory / Nickel metal hybrid battery (x4)
- Battery Life: Approx. 300 hours (Not using pneumatic floating system)
- Standard Accessories: Stepped probe (05H2A148), Probe Diameter Calibration Block (12AAA715), and LR6 Battery / AC Adapter (06AEG180JA) 120V
- Mass: 55.16 lbs (25kg)
- Dimensions: 41.85″ x 21.85″ x 18.94″ / 1063mm (W) x 555mm (D) x 418mm (H)
QM-Height Gage with Standard Accessories:
- 64PKA094A: Mitutoyo QM-Height – 0-14″/0-350mm
- 64PKA095A: Mitutoyo QM-Height – 0-24″/0-600mm
- 64PKA129A: Mitutoyo QM-Height w/ Pneumatic Floating System – 0-14″/0-350mm
- 64PKA130A: Mitutoyo QM-Height w/ Pneumatic Floating System – 0-24″/0-600mm
QM-Height Gage Unit Only:
- 518-231: Mitutoyo QM-Height – 0-14″/0-350mm
- 518-233: Mitutoyo QM-Height – 0-24″/0-600mm
- 518-235: Mitutoyo QM-Height w/ Pneumatic Floating System – 0-14″/0-350mm
- 518-237: Mitutoyo QM-Height w/ Pneumatic Floating System – 0-24″/0-600mm
QM-Height Gage Optional Accessories:
- 12AAC072: Depth Probe
- 12AAA792: Dial Indicator Holder (8mm diameter stem) # 12AAA792
- 12AAA837: Dial Indicator Holder(3/8″ stem) # 12AAA837
- 12AAA793: Probe Extension Holder (3.3″ / 85mm) # 12AAA793
- 12AAF667: 2mm Diameter Ruby Ball Probe # 12AAF667
- 957261: 2mm Diameter Ball Probe # 957261
- 957262: 3mm Diameter Ball Probe # 957262
- 957263: 4mm Diameter Ball Probe # 957263
- 05HAA394: 5mm Diameter Ball Probe (for 05HZA148) # 05HAA394
- 12AAB552: 10mm Diameter Ball Probe # 12AAB552
- 12AAF670: 14mm Diameter Disk Probe # 12AAF670
- 12AAF671: 20mm Diameter Disk Probe # 12AAF671
- 957264: 4mm Diameter Ball Offset Probe # 957265
- 957265: 5mm Diameter Ball Offset Probe # 957265
- 12AAA788: 6mm Diameter Ball Offset Probe # 12AAA788
- 05HZA173: Scriber # 05HZA173
- 264-504-5A: DP-1VR # 264-504-5A
- 936937: SPC Cable (40″ / 1m) # 936937
- 965014: SPC CABLE (80″ / 2m) # 965014
