  • Product Code: #513-443-16T

    Horizontal 20 Degree Tilted Face Dial Test Indicator Full Set # 513-443-16T

    Range: .016"

    Graduations: .0001"

    Price: $259.00 $217.50
    Lowest Price Guaranteed!
    Quantity

    Product Description

    513-443-16T Mitutoyo Horizontal 20° Tilted Face Dial Test Indicator Full Set: .016"

    The Mitutoyo 513-443-16T Horizontal 20° Tilted Face Dial Test Indicator Full Set has the following specifications:

    • Range: .016"
    • Graduation: .0001"
    • Accuracy: +/- .0002"
    • Dial reading: 0-4-0
    • Measuring Force: 0.3N or less
    • Contact Point Length: 15mm
    • Mass: 48 grams
    • Anti-Magnet
    • Jeweled Bearing
    • With Revolution Counter
    • Black Dial Face

    Features:

    • The dial face points upward, allowing users to read the graduations from the user's side. It is convenient when measuring on the side of a large workpiece and the workbench is high.
    • Using the universal holder allows easy hole centering. The dial face always faces upward when the indicator is rotated for easy reading.
    • Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • No-clutch structure for automatic reversal of measuring direction.
    • One-piece bezel and crystal design with O-ring provide resistance to water and dust.
    • The glare-free flat crystal face has a scratch-resistant coating.
    • High sensitivity and quick response because of jeweled bearings.
    • Standard carbide contact point provide.
    • Basic Set Includes: Test Indicator with .079" Diameter Contact Point, knurled clamp ring, and 3/8" Dovetail

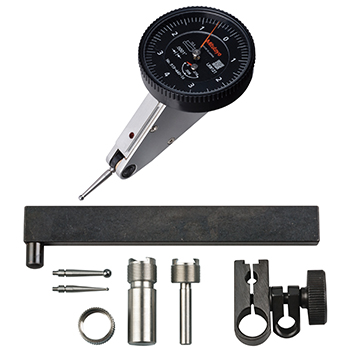

    • Full Set Includes: Test Indicator with .079" Diameter Contact Point, .039" Diameter Contact Point, .118" Diameter Contact Point, .157" Diameter Dovetail, Swivel Clamp, 4" Holding Bar

    Mitutoyo Horizontal 20° Tilted Face Dial Test Indicators - Inch:

    .0005" Graduations - Accuracy +/- .0005" - Dial Reading 0-15-0

    • 513-442-10A Horizontal 20° Tilted Face Test Indicator Basic Set: .06"
    • 513-442-16A Horizontal 20° Tilted Face Test Indicator Basic Set: .06" (Black Dial)
    • 513-446-10A Horizontal 20° Tilted Face Test Indicator Basic Set: .06" (Long Contact)
    • 513-446-16A Horizontal 20° Tilted Face Test Indicator Basic Set: .06" (Black Dial, Long Contact)
    • 513-442-10T Horizontal 20° Tilted Face Test Indicator Full Set: .06"
    • 513-442-16T Horizontal 20° Tilted Face Test Indicator Full Set: .06" (Black Dial)
    • 513-446-10T Horizontal 20° Tilted Face Test Indicator Full Set: .06" (Long Contact)
    • 513-446-16T Horizontal 20° Tilted Face Test Indicator Full Set: .06" (Black Dial, Long Contact)

    .0001" Graduations - Accuracy +/- .0002" - Dial Reading 0-4-0

    • 513-443-10A Horizontal 20° Tilted Face Test Indicator Basic Set: .016"
    • 513-443-16A Horizontal 20° Tilted Face Test Indicator Basic Set: .016" (Black Dial)
    • 513-443-10T Horizontal 20° Tilted Face Test Indicator Full Set: .016"
    • 513-443-16T Horizontal 20° Tilted Face Test Indicator Full Set: .016" (Black Dial)
  •
