Mitutoyo 513-454-10T Vertical Test Indicator Full 0.8mm
Product Code: 513-454-10TMFGID: 513-454-10T
Brand: Mitutoyo
Product Description
513-454-10T Mitutoyo Vertical Type Dial Test Indicator Full Set: 0.8mm
The Mitutoyo 513-454-10T Vertical Type Dial Test Indicator Full Set has the following specifications:
- Range: 0.8mm
- Graduation: .01mm
- Accuracy: .008mm
- Dial reading: 0-40-0
- Measuring Force: 0.3N or less
- Contact Point Length: 20.9mm
- Mass: 50 grams
- Anti-Magnet
- Jeweled Bearing
Features:
- The dial face points upward, allowing users to read the graduations from the user’s side. It is convenient when measuring on the side of a large workpiece and the workbench is high.
- Using the universal holder allows easy hole centering. The dial face always faces upward when the indicator is rotated for easy reading.
- Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
- No-clutch structure for automatic reversal of measuring direction.
- One-piece bezel and crystal design with O-ring provide resistance to water and dust.
- The glare-free flat crystal face has a scratch-resistant coating.
- High sensitivity and quick response because of jeweled bearings.
- Standard carbide contact point provide.
- Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem

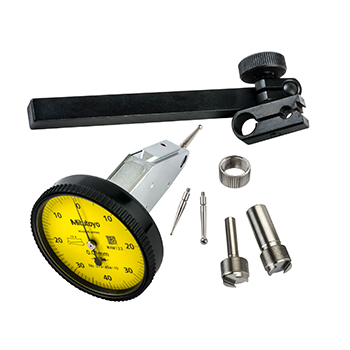

- Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
Mitutoyo Vertical Dial Test Indicators – Metric:
- 513-454-10E Vertical Type Dial Test Indicator Basic Set:0.8mm (.01mm)
- 513-455-10E Vertical Type Dial Test Indicator Basic Set:0.2mm (.002mm)
- 513-454-10T Vertical Type Dial Test Indicator Full Set:0.8mm (.01mm)
- 513-455-10T Vertical Type Dial Test Indicator Full Set:0.2mm (.002mm)
