AGD Group 2 Dial Indicator # 25-611J

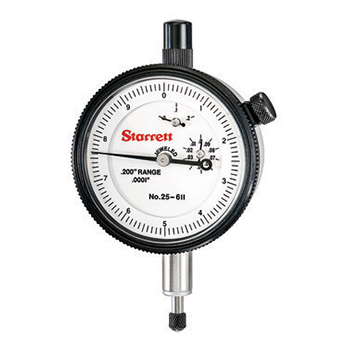

25-611J Starrett AGD Group 2 Dial Indicator: 0-.200"

The Starrett 25-611J AGD Group 2 Dial Indicator has the following specifications:

• Range: 0-.200"
• Range One Rev: .010"
• Graduations: .0001"
• Dial Reading: 0-10
• Bearings: Jeweled
• Dial Face: White
• EDP: 53301

The Starrett 25 Series Dial Indicator has a shockless, hardened steel gear train and jewel bearings, except where noted. It is furnished with a lug-on-center back. Antimagnetic mechanism is optional for all models. Special non-shock mechanism is available for all models except 25-109, 25-209 and 25-116.

Features:

• Rugged and simple unit construction with a universally fitting design
• Sharp bezel serrations for positive grip
• Unbreakable crystal
• Hardened stainless steel stem
• No-glare satin finish on case
• Hardened stainless steel rack and spindle
• Massive bridge for rigid bearing support
• Hardened stainless steel gears and pinions
• Non-reflecting white eggshell finish on dial
• Jewel Bearings
• Lug On Center Back Installed, Flat Back Included

Starrett AGD Group 2 Dial Indicators - Inch:

.00005" Graduations:

• 25-109J AGD Group 2 Dial Indicator: 0-.015" (0-3-0)
• 25-209J AGD Group 2 Dial Indicator: 0-.015" (0-6)

.0001" Graduations:

• 25-116J AGD Group 2 Dial Indicator: 0-.015" (0-3-0)
• 25-118J AGD Group 2 Dial Indicator: 0-.020" (0-4-0)
• 25-218J AGD Group 2 Dial Indicator: 0-.020" (0-8)
• 25-111J AGD Group 2 Dial Indicator: 0-.025" (0-5-0)
• 25-211J AGD Group 2 Dial Indicator: 0-.025" (0-10)
• 25-511J AGD Group 2 Dial Indicator: 0-.200" (0-5-0)
• 25-611J AGD Group 2 Dial Indicator: 0-.200" (0-10)

.00025" Graduations:

• 25-124J AGD Group 2 Dial Indicator: 0-.025" (0-5-0)
• 25-224J AGD Group 2 Dial Indicator: 0-.025" (0-10)
• 25-128J AGD Group 2 Dial Indicator: 0-.050" (0-10-0)
• 25-228J AGD Group 2 Dial Indicator: 0-.050" (0-20)

.0005" Graduations:

• 25-134J AGD Group 2 Dial Indicator: 0-.050" (0-10-0)
• 25-234J AGD Group 2 Dial Indicator: 0-.050" (0-20)
• 25-136J AGD Group 2 Dial Indicator: 0-.075" (0-15-0)
• 25-236J AGD Group 2 Dial Indicator: 0-.075" (0-30)
• 25-138J AGD Group 2 Dial Indicator: 0-.100" (0-20-0)
• 25-238J AGD Group 2 Dial Indicator: 0-.100" (0-40)
• 25-131J AGD Group 2 Dial Indicator: 0-.125" (0-25-0)
• 25-231J AGD Group 2 Dial Indicator: 0-.125" (0-50)
• 25-431J AGD Group 2 Dial Indicator: 0-.500" (0-50)
• 25-631J AGD Group 2 Dial Indicator: 0-1.00" (0-50)

.001" Graduations:

• 25-142J    AGD Group 2 Dial Indicator: 0-.050" (0-10-0)
• 25-242J    AGD Group 2 Dial Indicator: 0-.050" (0-20)
• 25-143J    AGD Group 2 Dial Indicator: 0-.075" (0-15-0)
• 25-243J    AGD Group 2 Dial Indicator: 0-.075" (0-30)
• 25-144J    AGD Group 2 Dial Indicator: 0-.100" (0-20-0)
• 25-244J    AGD Group 2 Dial Indicator: 0-.100" (0-40)
• 25-145J    AGD Group 2 Dial Indicator: 0-.125" (0-25-0)
• 25-245J    AGD Group 2 Dial Indicator: 0-.125" (0-50)
• 25-141J    AGD Group 2 Dial Indicator: 0-.250" (0-50-0)
• 25-241J    AGD Group 2 Dial Indicator: 0-.250" (0-100)
• 25-341/5J AGD Group 2 Dial Indicator: 0-.500" (0-50-0)
• 25-441/5J AGD Group 2 Dial Indicator: 0-.500" (0-100)
• 25-341/5P AGD Group 2 Dial Indicator: 0-.500" (0-50-0, Plain Bearings)
• 25-441/5P AGD Group 2 Dial Indicator: 0-.500" (0-100, Plain Bearings)
• 25-341J     AGD Group 2 Dial Indicator: 0-1.00" (0-50-0)
• 25-441J     AGD Group 2 Dial Indicator: 0-1.00" (0-100)
• 25-341P    AGD Group 2 Dial Indicator: 0-1.00" (0-50-0, Plain Bearings)
• 25-441P    AGD Group 2 Dial Indicator: 0-1.00" (0-100, Plain Bearings)

With Certification:

• 25-441/5J W/SLC AGD Group 2 Dial Indicator: 0-.500" (.001", 0-100)
• 25-441/J W/SLC   AGD Group 2 Dial Indicator: 0-1.00" (.001", 0-100)
