ACU-RITE DRO300 Digital Readouts
Product Code: 1197251-01MFGID: 1197251-01
Brand: Acu-Rite
Product Description

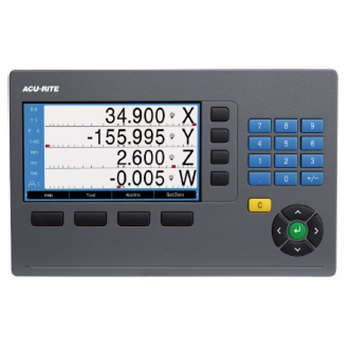

1197251-01 ACU-RITE DRO300 Digital Readout: 3 Axis Grinding
The ACU-RITE 1197251-01 DRO300 Digital Readout has the following specifications:
- Axes: 3 Axis Grinding
- Application: Turning/Grinding
- 3 axes readout
- 5um (.0002) resolution SENC 150 Precision Glass Scales with (4m) 13′ Armor Cables
- Readout bracketry (side mount ID 1223636-01 recommended)
- X, Y, and Z scale brackets
Features:
- Number of Axes: 3 or 4
- Display: 7″ TFT Color
- Data Interface: USB Type C
- Job Clock (Stop Watch)
- Feed Rate Display
- Multiple Language Supports
- Absolute/Incremental
- Graphic Pos aid for Near Zero Warning with Graphics
- Help Function
- Tool Offsets / Diameter: 100
- Preset and Zero Reset
- 4 Function Calculator/Trig Calculator/rpm
- Instant Inch/mm Conversion
- Position-TracTM (Recalls last data after power loss) / RM
- Advanced Skew Compensation
- Multiple Datum
- Multiple Display Views: DRO 1 & 2 & 3
- Part Program Storage (Import, Export) 10
- Scale Factor (Allows for Part Shrinkage / Expansion)
- Counter Diagnostics
- Encoder Input Linear or Rotary
- Linear/Segmented Non-Linear Compensation up to ±99,999ppm
- Backlash Compensation
- Remote Switch allows data output, remote zero, and next step
- Measured Value Out allows data to be output when probing
- I/O (6 Input / 10 Output) Option
- Day / Night (Display Mode)
- Installation Guide
- User Management
- Dynamic Zoom / Axis Highlight
- File Management (Import, Export)
- Send Position (Screen Values via USB to PC w/SW v1.4.0 or higher)
- System Information
Milling Specific Functions:
- Bolt Hole (Circle and Linear) Pattern Calculations with Graphics
- Centerline Calculation (workpiece zero, midpoints, and circle center)
- Mill Line Function
- Mill Arc Function
- Edge finder/Touch Probe Input
- Spindle Control Interface Option
Turning Specific Functions:
- Lock Axis Feature (Establish tool offsets under load)
- Instant Radius / Diameter Conversion
- Taper Calculator & Taper Ratio
- Vectoring
- Thread Assist Cycle
- CSS (Constant Surface Speed) Option
If this linear scales page does not have the specifications or information you are searching please visit the ACU-RITE company website. You can find their website by Clicking Here.
ACU-RITE Digital Readouts
- 1197251-01 DRO300 Digital Readout: 3 Axis Grinding
- 1197251-02 DRO300 Digital Readout: 4 Axis Grinding
