ACU-RITE G102-1420 Grinding System: 14×20″
Product Code: G102-1420MFGID: G102-1420
Brand: ACU-RITE
Product Description

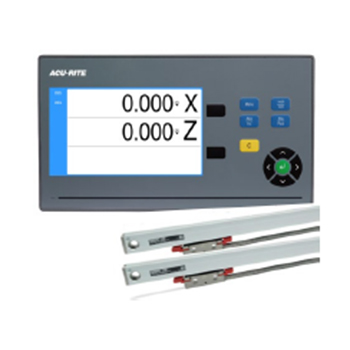

G102-1420 ACU-RITE DRO102 Grinding System – 2 Axis: 350x500mm
The ACU-RITE G102-1420 DRO102 Grinding System – 2 Axis has the following specifications:
- Millimeter: 350x500mm
- Inch: 14 x 20″
- 2 axes readout
- Two 1μm (.00004″) SENC 150 Precision Glass Scales with (4m) 13′ Armor Cable
- Readout Bracketry
- Scale Brackets
Note: Readout mounting brackets and scale brackets are included in the 2 axes system list price, but need to be selected and added as a line item for each system ordered.
Features:
- Display: 7″ TFT Color
- Data Interface: USB Type C
- Feed Rate Display
- Multiple Language Supports
- Absolute/Incremental
- Help Function
- Zero Reset
- Instant Inch/mm Conversion
- Position-TracTM (Recalls last data after power loss) / RM
- Counter Diagnostics
- Encoder Input Linear only
- Linear/Segmented Non-Linear Compensation upto ±99,999ppm
- Day / Night (Display Mode)
- Installation Guide
- User Management
- Dynamic Zoom / Axis Highlight
- File Management (Import, Export)
- System Information
If this linear scales page does not have the specifications or information you are searching please visit the ACU-RITE company website. You can find their website by Clicking Here.
ACU-RITE DRO102 Grinding System – 2 Axis
- G102-0612 DRO102 Grinding System – 2 Axis 150x300mm
- G102-0614 DRO102 Grinding System – 2 Axis 150x350mm
- G102-0618 DRO102 Grinding System – 2 Axis 150x450mm
- G102-0814 DRO102 Grinding System – 2 Axis 200x350mm
- G102-0816 DRO102 Grinding System – 2 Axis 200x400mm
- G102-0818 DRO102 Grinding System – 2 Axis 200x450mm
- G102-0820 DRO102 Grinding System – 2 Axis 200x500mm
- G102-1018 DRO102 Grinding System – 2 Axis 250x450mm
- G102-1020 DRO102 Grinding System – 2 Axis 250x500mm
- G102-1024 DRO102 Grinding System – 2 Axis 250x600mm
- G102-1216 DRO102 Grinding System – 2 Axis 300x400mm
- G102-1220 DRO102 Grinding System – 2 Axis 300x500mm
- G102-1224 DRO102 Grinding System – 2 Axis 300x600mm
- G102-1416 DRO102 Grinding System – 2 Axis 350x400mm
- G102-1420 DRO102 Grinding System – 2 Axis 350x500mm
