ACU-RITE M203-1330 Milling System: 13 x 30″
Product Code: M203-1330MFGID: M203-1330
Brand: ACU-RITE
Product Description

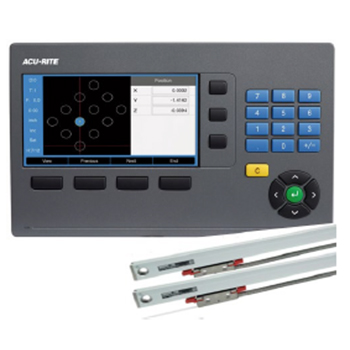

M203-1330 ACU-RITE DRO203 Milling System – 2 Axes Milling: 325x750mm
The ACU-RITE M203-1330 DRO203 Milling System – 2 Axes Milling has the following specifications:
- Millimeter: 325x750mm
- Inch: 13×30″
- 3 axes readout
- 5?m (.0002) resolution SENC 150 Precision Glass Scales with (4m) 13′ Armor Cables
- Readout bracketry (side mount ID 1223636-01 recommended)
- X, Y, and Z scale brackets
Features:
- Number of Axes: 3
- Display: 7″ TFT Color
- Data Interface: USB Type C
- Job Clock (Stop Watch)
- Feed Rate Display
- Multiple Language Supports
- Absolute/Incremental
- Graphic Pos aid for Near Zero Warning with Graphics
- Help Function
- Tool Offsets / Diameter: 16
- Preset and Zero Reset
- 4 Function Calculator/Trig Calculator/rpm
- Instant Inch/mm Conversion
- Position-TracTM (Recalls last data after power loss) / RM
- Multiple Datum
- Scale Factor (Allows for Part Shrinkage / Expansion)
- Counter Diagnostics
- Encoder Input Linear or Rotary
- Linear/Segmented Non-Linear Compensation upto ±99,999ppm
- Backlash Compensation
- Day / Night (Display Mode)
- Installation Guide
- User Management
- Dynamic Zoom / Axis Highlight
- File Management (Import, Export)
- Send Position (Screen Values via USB to PC w/SW v1.4.0 or higher)
- System Information
Milling Specific Functions:
- Bolt Hole (Circle and Linear) Pattern Calculations with Graphics
- Centerline Calculation (workpiece zero, midpoints, and circle center)
- Mill Line Function
- Mill Arc Fucntion
Turning Specific Functions:
- Lock Axis Feature (Establish tool offsets under load)
- Instant Radius / Diameter Conversion
- Taper Calculator & Taper Ratio
- Vectoring
